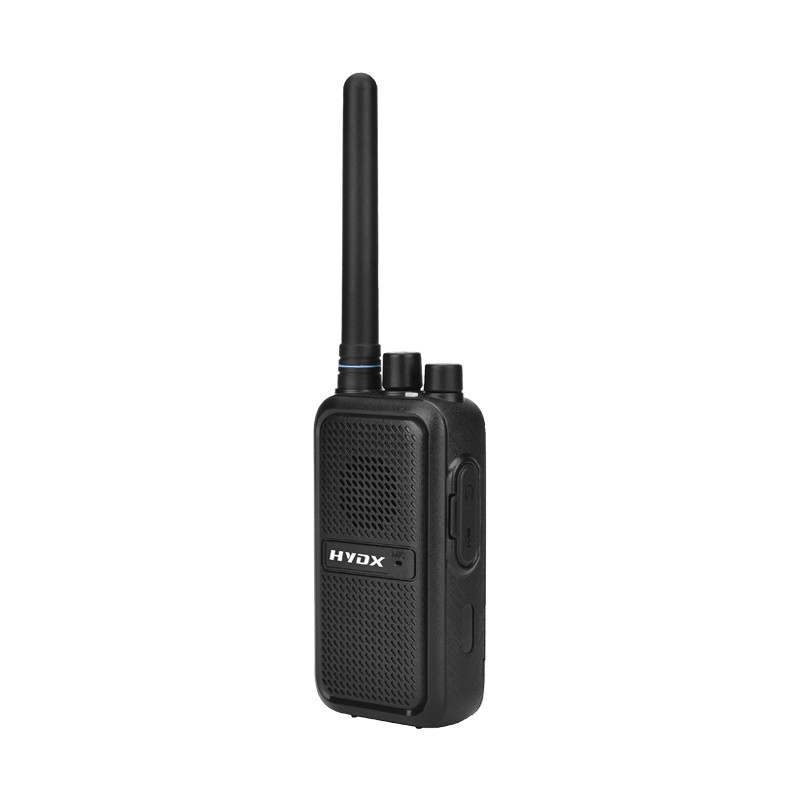

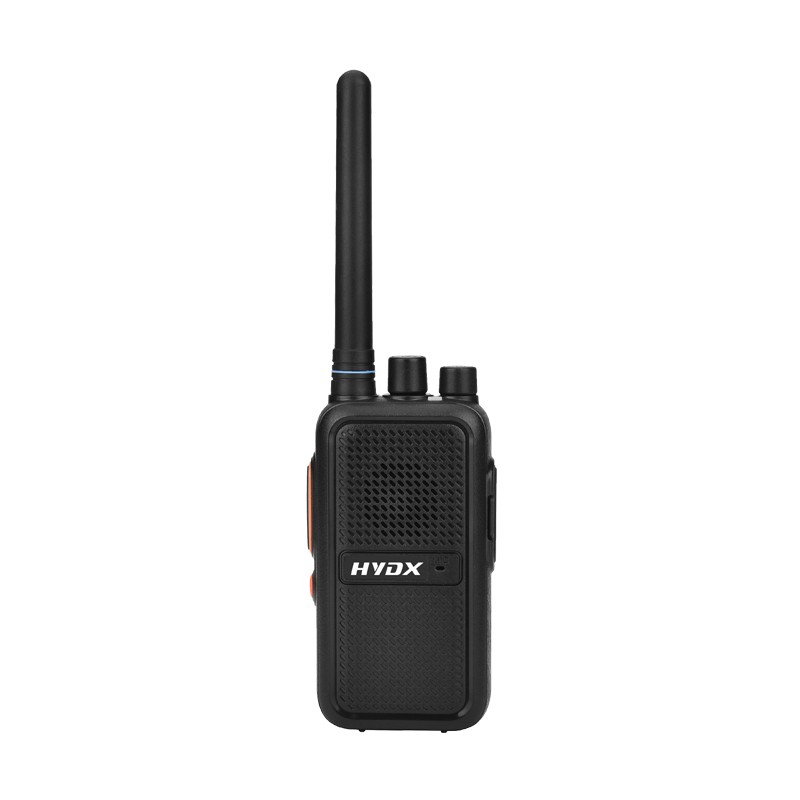

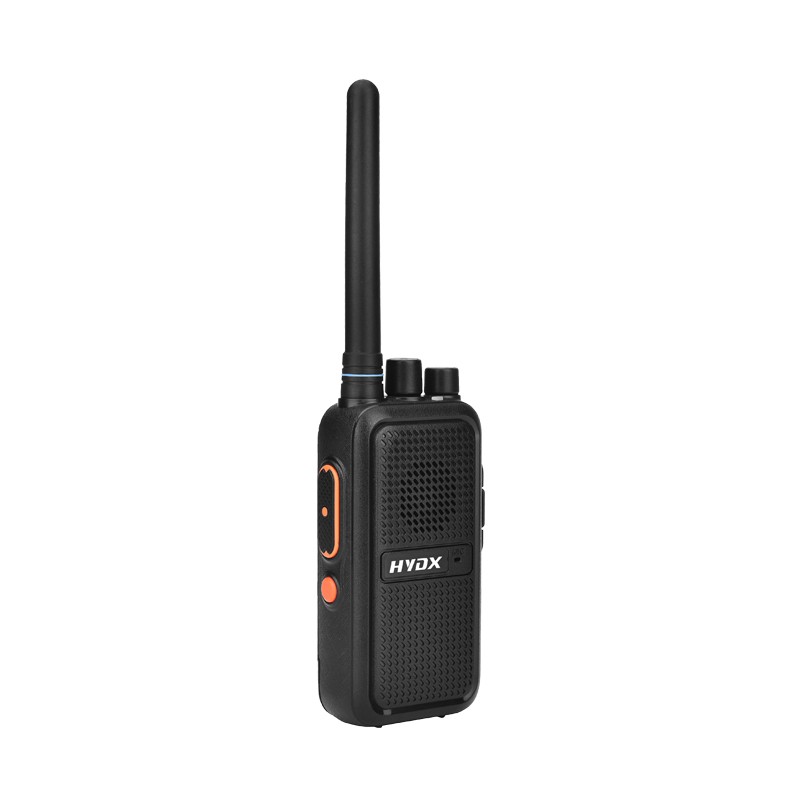

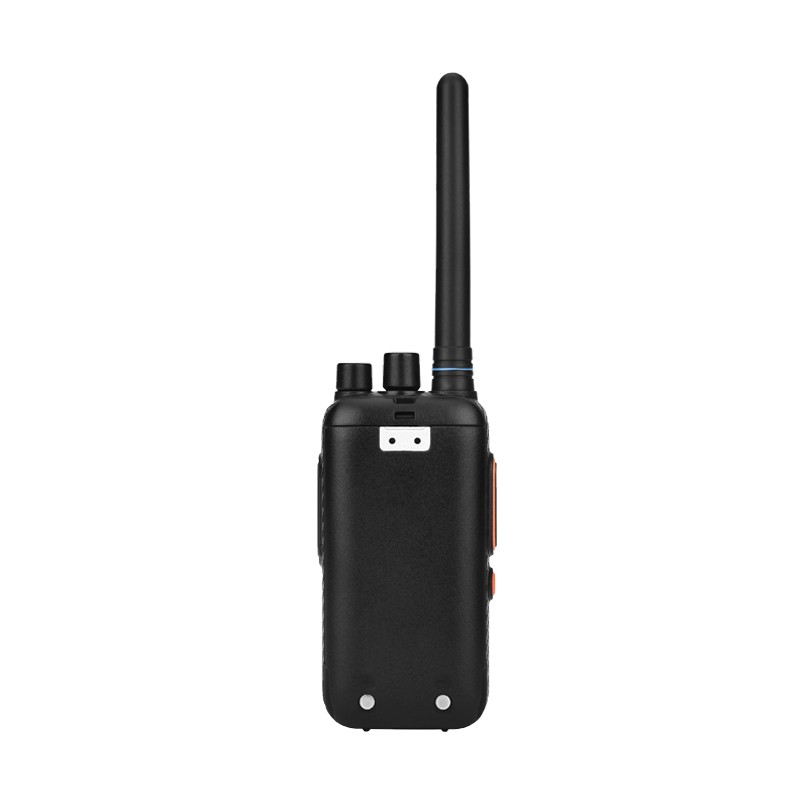

230Handsfree Commercial Rugged Warehouse Security 2 Way Radios
Product Description:
·Long antenna design; HYDX H9 two-way radio has a longer range than other radios in the same environment; you can get clear calls indoors and outdoors.
·Compact and rugged body; dust-proof and drop-proof; shock-resistant; stable reception and transmission even in harsh conditions.
·Support connecting earpiece and mic set keep your smoothly receiving and transmittion;Ideal for church; warehouse; hotel; hunting and various activities.
·1500 mAh rechargeable lithium battery; supports 12-14 hours of frequent use; it takes about 4 hours to fully charge.
·0-9 level voice activated transmit function allows real hands free operation; adjusting the level according to the environment allows you to get the best audio quality.
·Easy to use 2-way radio; vox allows you to operate hands-free;emergency alarm provides you with extra protection.
Main Functions
1.400-470MHz/136-174MHz
2.Chinese/English voice report
3.High/Low Power Switchable
4.Compandor
5.Scrambler
6.16 Channels
7.VOX
8.CTCSS/DCS
9.Power Output 5W
10.Scanning
12.Wide/Narrow Bandwidth
13.Battery Save
Technical Specification
GENERAL |
|
Frequency Range |
UHF:400-470MHz VHF:136-174MHz |
RF Output Power | H:≤5W L:≤1W |
Channels | 16 |
Channel Spacing | Wide:25KHz Narrow:12.5KHz |
CTCSS/DCS | 50 CTCSS / 105 DCS |
Antenna Impedence | 50Ω |
Operating Temperature | -30℃+60℃ |
Operating Voltage | DC 7.4V |
Battery Type | 1500mAh |
Dimension(Excluding antenna) | 108(H)×58(W)×30(D)mm |
Weight(Battery,Antenna Including) | About 230g |
TRANSMITTER |
|
Output Power |
H:≤5W L:≤1W |
Modulation Mode | F3E |
Modulation Distortion | ≤ 5% |
Spurious and Harmonics |
-65 dB |
FM Noise | ≤ -45 dB |
RECEIVER | |
Reference Sensitivity | ≤ -123 dBm |
Adjacent Channel Selectivity | ≤ -65 dB |
Inter-modulation response immunity | ≤ -55 dB |
S/N |
≥ 45 dB |
Rated Output Power | ≤750mW |
Rated Audio Distortion | ≤5% |
Packing&Delivery
Two-way Radio Walkie Talkie Gift Box, 10 pcs / carton.
* 1 x HYDX H9
* 1 x Antenna
* 1 x Battery
* 1 x Charger
* 1 x Belt Clip
* 1 x Hand Strap
* 1 x User Manual
