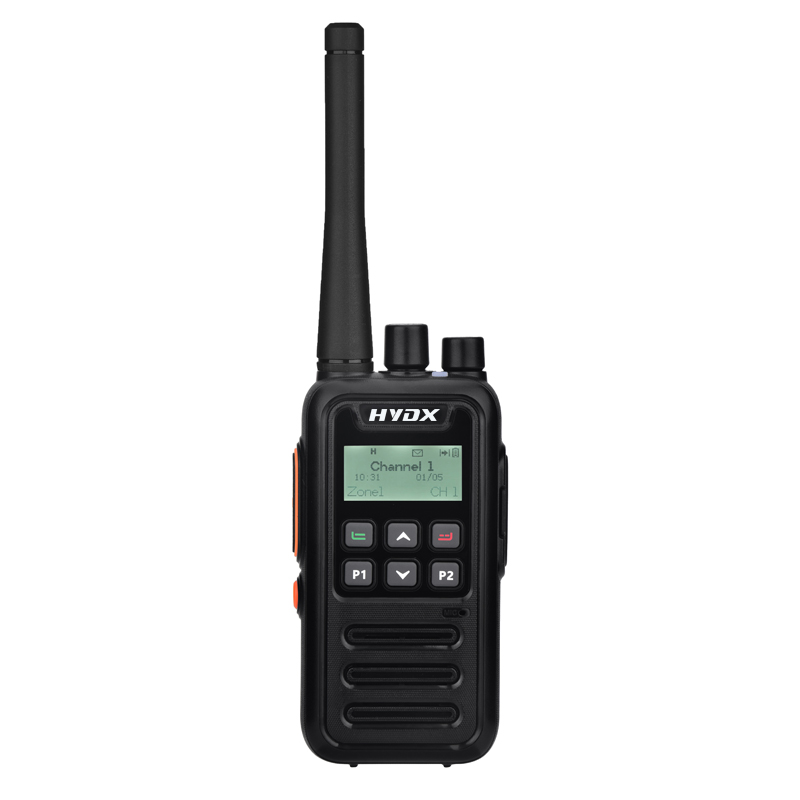

D510 Digital walkie talkie with 1600mAh 1000 channels capacity commercial handheld two-way radio
Brand:
HYDXItem NO.:
D510Order(MOQ):
500Payment:
T/T,PayPalProduct Origin:
ChinaColor:
BlackShipping Port:
Xiamen/ShenzhenLead Time:
40~60daysWeight:
240HYDX D510 DMR Radio Walkie-Talkie Longe Range Commercial UHF Radio Handheld Two Way Radio
Product Description:
·4W/1W Out Power. The HYDX D510 is a commercial handheld radio with a compact design, featuring high-low power selectable among 4W/1W and 1000 channels capacity, allowing bulk import via software.
·Works Well with Repeater. This solid and rugged radio works on simplex (radio to radio direct), as well as work in conjunction with a hotspot device or repeaters. 300H recording function optional.
·Dual Capacity Direct Mode.It allows monitoring both the DMR community and stay in touch with your friends on the local analog repeaters at the same time. Promiscuous mode enables it to hear all talk groups.
·Large Battery & Crystal Sound.Come with a 1600mAh large battery, 5590 battery life: Analog 11h/Digital 15h. At the same time, it is with a crystal-clear audio sound when transmitting and receiving.
Main Functions
1.Stored 1000 Channels capacity
2.1000 Digital Contacts
3.Private/Group/All Call
4.Dual Capacity Direct Mode and Repeater
5.SMS (PC Editable and Check)
6.Call Records
7.Scanning and Auto Scanning Function
8.Call Alert
9.VOX
10.TOT
11.Power Save/Lower Power Indicator
12.Talkaround
13.Recording(Optional)
Technical Specification
GENERAL |
|
Frequency Range |
UHF:400-470MHz |
Channel Capacity | 1000 |
Channel Spacing | 12.5kHz |
Operation Voltage | DC7.4V |
Battery Type | Li-polymer |
Battery Capacity | 1600mAh |
Output Current | 400mA |
Charging Time | 4-5 hours |
Battery Life@5/5/90 | Analog:11h/Digital:15h |
Operation Temperature | -20℃~+ 50℃ |
Audio Power Output | ≤1W@16W |
Dimensions (H×W×D) | 113(H)*58(W)*38(D) |
Weight(Battery,Antenna Including) | About 240g |
TRANSMITTER |
|
Carrier Output Power |
H:≤4W L:≤1W |
Carrier Frequency Tolerance |
≤±1PPM@200~500MHz |
Adjacent Channel Power |
≤ -60 dB@12.5KHz ≤ -65 dB@25KHz |
Modulation Mode |
4FSKDigital 12.5kHz Data/Voice:7K60FXW 4FSKDigital 12.5KHz Data:7K60FXD |
Transmit Spurious Emission | ≥67dB |
Modulation Accuracy | 5%@25℃ |
Audio Response | +1/-3 dB |
Audio Distortion | ≤5% |
RECEIVER | |
Static Sensitivity | ≥ -117 dBm |
Co-Channel inhibition | ≥-12dB |
Adjacent Channel Selectivity | ≥ 60 dB |
Inter-modulation response immunity | ≥ 60 dB |
Spurious Response Immunity |
≥70dB |
Inter-modulation response Immunity NTER | ≥ 60dB |
Blocking | ≥ 84dB |
Receiver Spurious Emission | ≥ 57dB |
Packing&Delivery
Two-way Radio Walkie Talkie Gift Box, 10 pcs / carton.
* 1 x HYDX D510
* 1 x Antenna
* 1 x Battery
* 1 x Charger
* 1 x Belt Clip
* 1 x Hand Strap
* 1 x User Manual
* 1 x Adapter
