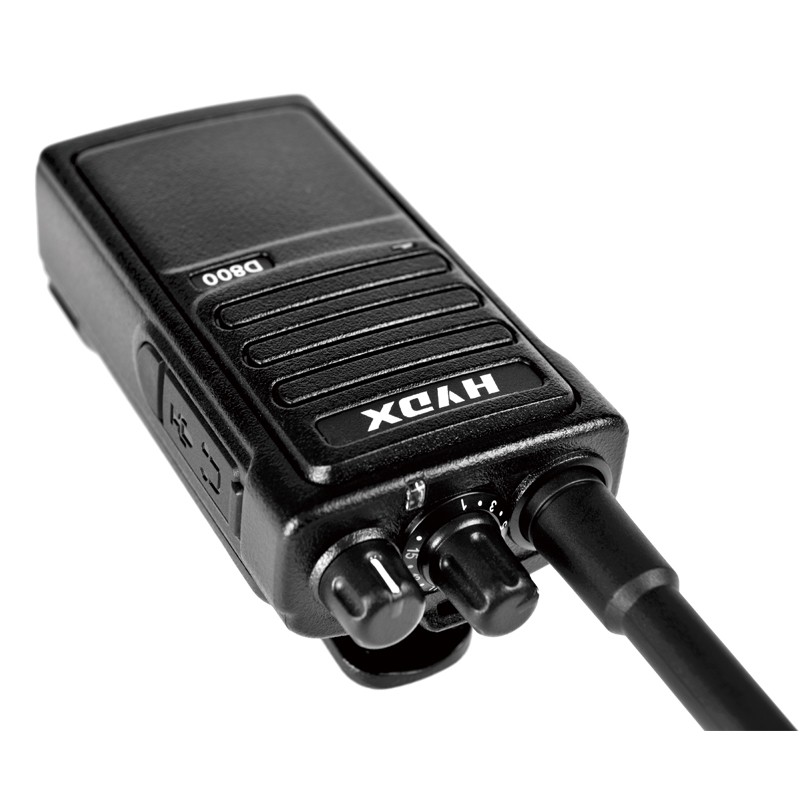

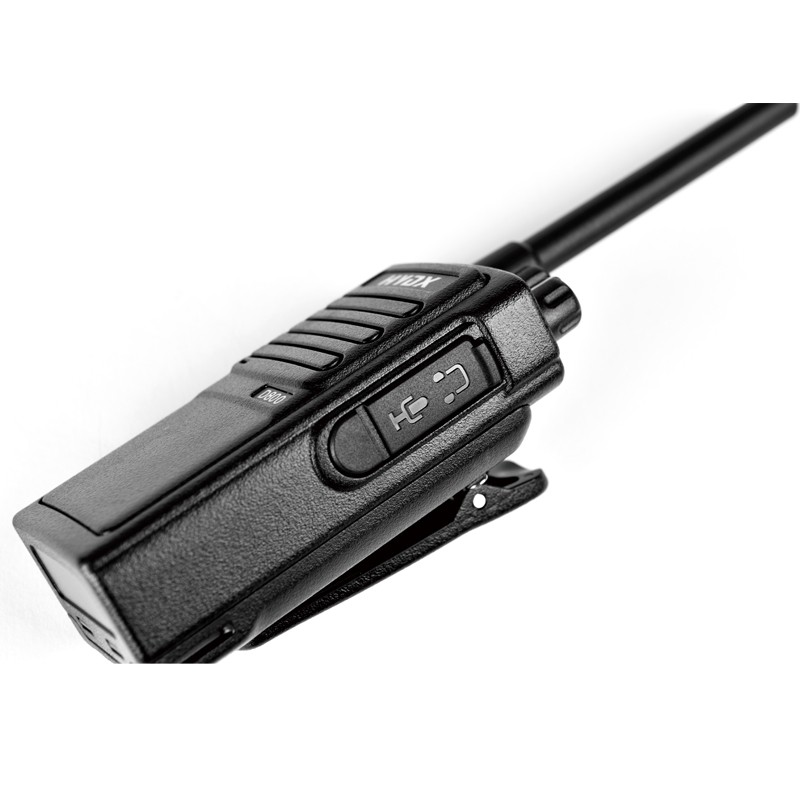

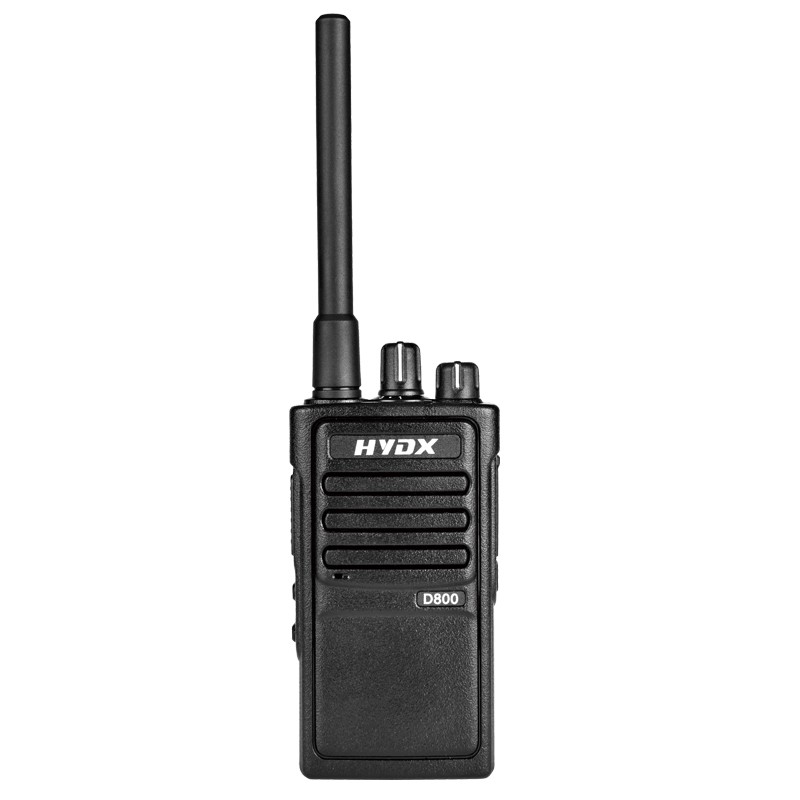

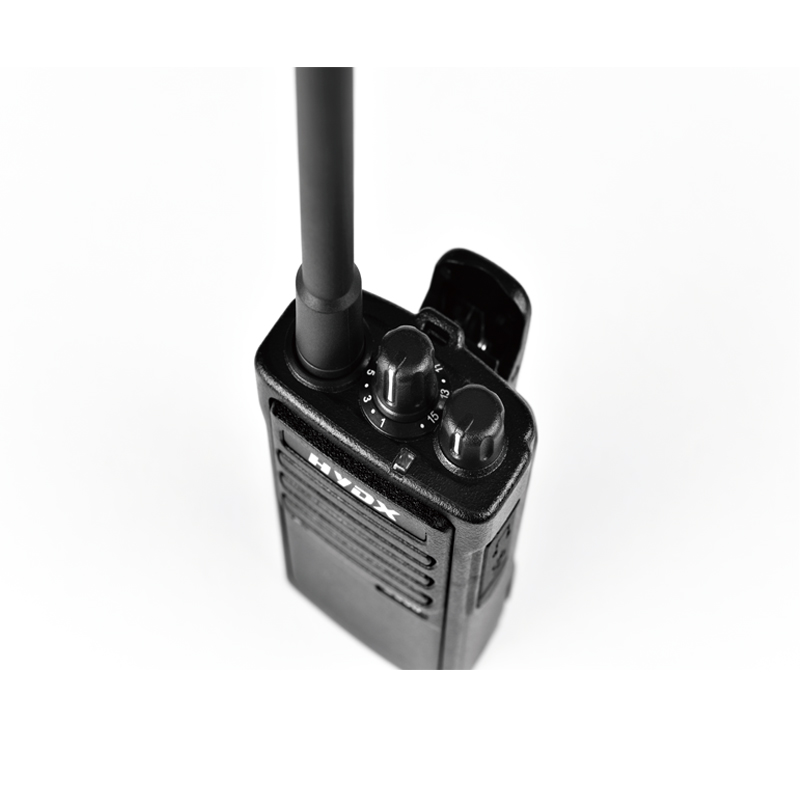

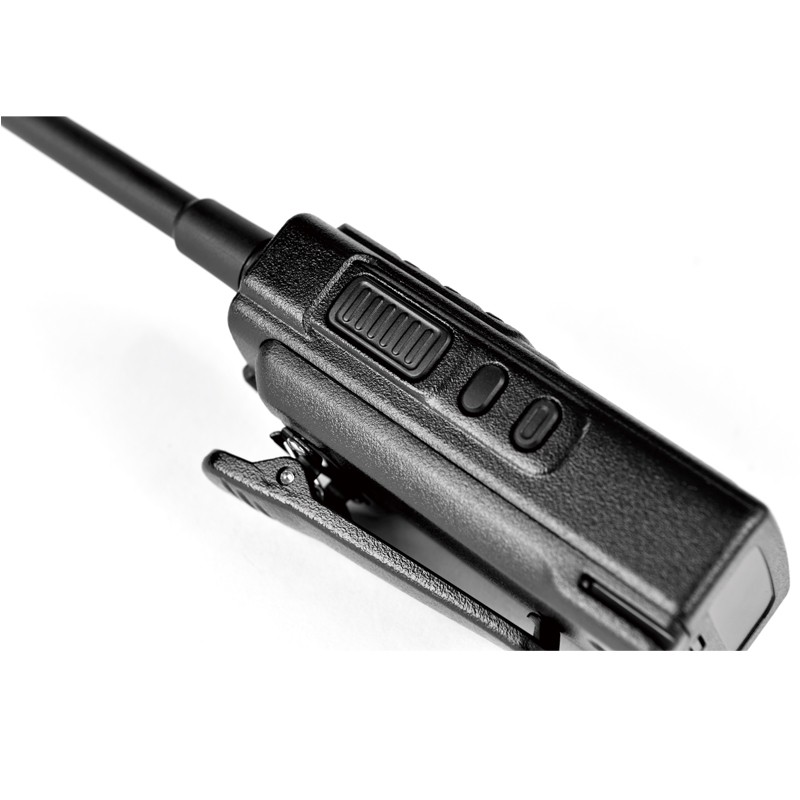

DMR Digital Amateur Long range Two Way Radio

D800 Digital walkie talkie with 1600mAh 32channels 1024 digital contacts dual capacity direct mode and repeater

  • Brand:

    HYDX
  • Item NO.:

    D800
  • Order(MOQ):

    200
  • Payment:

    T/T,L/C,Credit Card,PayPal,Western Union,Cas
  • Product Origin:

    China
  • Color:

    Black
  • Shipping Port:

    Xiamen/Shenzhen
  • Lead Time:

    70~90days
  • Weight:

    270

DMR Digital Amateur Long Range Two Way Radio


Product Description:

·5W/1W Selectable.The HYDX D800 is a commercial handheld radio with a compact design, featuring high-low power selectable among 5W/1W and 1024 DMR contacts storage, allowing bulk import via software.

·Works Well with Repeater.This solid and rugged radio works on simplex (radio to radio direct), as well as work in conjunction with a hotspot device or repeaters.
·Dual Capacity Direct Mode.It allows monitoring both the DMR community and stay in touch with your friends on the local analog repeaters at the same time. Promiscuous mode enables it to hear all talk groups.

·Large Battery & Crystal Sound.Come with a 1600mAh large battery, the HYDX D800 support 5-7 hours of continuous working time and 36-48 hours of standby time. At the same time, it is with a crystal-clear audio sound when transmitting and receiving.


Main Functions

1.Stored 32 Channels

2.1024 Digital Contacts

3.Private/Group/All Call

4.Dual Capacity Direct Mode and Repeater

5.SMS(PC Editable and Check)

6.Call Records

7.Scanning and Auto Scanning Function

8.Call Alert

9.VOX

10.TOT

11.Power Save/Lower Power Indicator

12.Talkaround

13.Chinese/English/Korean


Technical Specification

GENERAL
    Frequency Range

    UHF:400-470MHz

    VHF:136-174MHz

    RF Output Power     H:≤5W   L:≤1W
    Channels     32
    Channel Spacing     Wide:25KHz   Narrow:12.5KHz
    CTCSS/DCS     50 CTCSS / 105 DCS
    Antenna Impedence     50Ω
    Operating Temperature     -20℃+50℃
    Operating Voltage     DC 7.4V
    Battery Type     1600mAh
    Dimension(Excluding antenna)     132(H)×62(W)×40(D)mm
    Weight(Battery,Antenna Including)     About 270g
TRANSMITTER
    Output Power

    H:≤5W

    L:≤1W

    FM Noise

    ≥ 35 dB@12.5KHz

    Transmit Spurious Emission     ≤ -30 dB@1GHz-4GHz
    Rated Audio Distortion     ≤ 5%
    Adjacent Channel Power     ≤ -60 dB@12.5KHz
RECEIVER
    Reference Sensitivity     ≤ -120 dBm@12.5K
    Adjacent Channel Selectivity     ≥ 65 dB
    Inter-modulation response immunity     ≤ -55 dB
    Block

    ≤ -84 dB

    S/N     ≥35 dB@12.5K
    Rated Output Power     ≤1000mW
    Rated Audio Distortion     ≤5%
Packing&Delivery


Two-way Radio Walkie Talkie Gift Box, 10 pcs / carton.


*  1 x HYDX D800


*  1 x Antenna


*  1 x Battery


*  1 x Charger


*  1 x Belt Clip


*  1 x Hand Strap


*  1 x User Manual


*  1 x Adapter
