DMR Motorola Repeater Digital Two Way Radio

UHF 4W Longe Range DMR Digital Two Way Radio

DMR 1.8 LCD display 1800mAh SMS Tier Ⅰ&Ⅱ MOTOTRBO digital radio

Brand:
HYDX
Item NO.:
D60
Order(MOQ):
500
Goods Stock:
1
Payment:
T/T,L/C,Credit Card,PayPal,Western Union,Cas
Product Origin:
China
Color:
Black
Shipping Port:
Xiamen/Shenzhen
Lead Time：
45~60
Weight：
260

Inquiry now

Product Detail

Product Description：

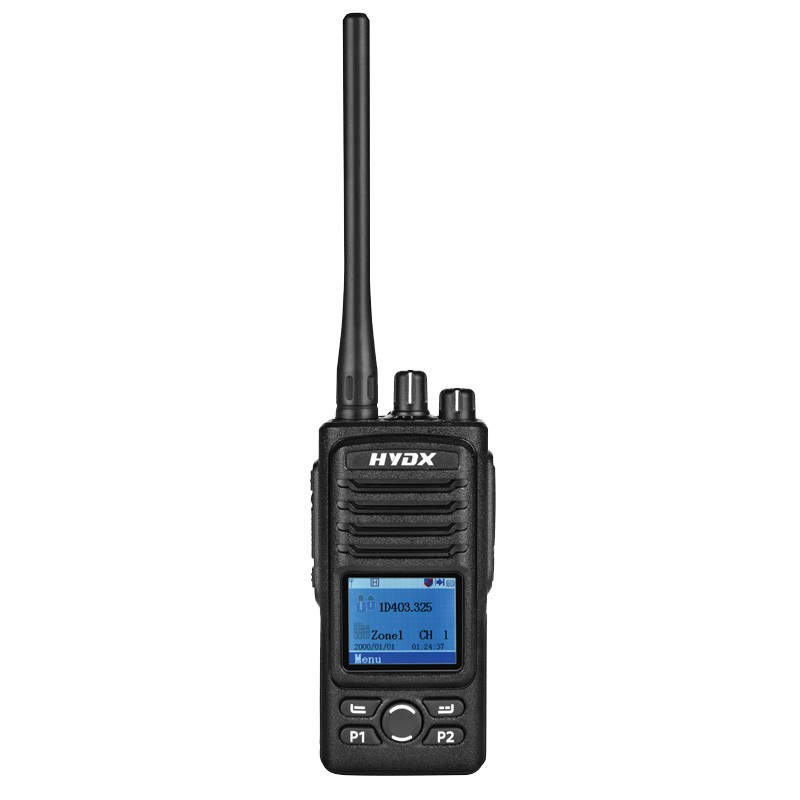

·1.8 inch high definition LCD colorful display, 4/1W Output Power.

·Analog & Digital DMR Tier I & II standard, compatible with MOTOTRBO digital radio and other DMR radios，supports SMS，digital voice encryption，private/group/all call functions etc.

·High capacity battery 1800mAh，battery indicator，power save， able to meet daily operation needs. Equipped with a single base for charging, convenient and fast.

·Programming cable for easier computer/PC (Microsoft Window 7/8/10 only, No Mac supported) programming, free driver/firmware/programming software available on our website or download at our link, mess of video tutorials on YouTube.

Main Functions

1.400-470MHz

2.High/Low Power Switchable 4W/1W

3.High Battery Capacity 1800mAh

4.Monitor

5.Tail Elimination

6.Lone Worker

7.Message

8.Repeater

9.Talk Around

10.Normal/High SQL

11.Battery Indicator

12.Encryption

13.Power Save

14.Channel Scanning/Priority Scanning

Technical Specification

GENERAL
Frequency Range	VHF:400-470MHz
RF Output Power	H:≤4W L:≤1W
Channels	16 Channels / 250 Zone
Channel Spacing	12.5KHz
CTCSS/DCS	50 CTCSS / 105 DCS
Antenna Impedence	50Ω
Operating Temperature	-30℃+60℃
Operating Voltage	DC 7.4V
Battery Type	2200mAh
Dimension(Excluding antenna)	132(H)×62(W)×38(D)mm
Weight(Battery,Antenna Including)	About 260g
TRANSMITTER
Output Power	H:≤4W L:≤1W
Frequency Stability	+/-1.5ppm
4FSK Modulation	12.5KHz(date only):7K60FXD 12.5KHz(date+voice):7K60FXE
Free Time Slot Power	≤ -57 dBm
Modulation Distortion	≤ 3%
Digital Audio Encode & Decode	AMBE+2TM
RECEIVER
Analog Sensitivity	0.35uV/-116dBm(20dB SINAD) 0.22uV/-120dBm(Typical)
Digital Selectivity	0.3uV/-117.4dBm(BER5%) 0.7uV/-110dBm(BER1%)
Adjacent Channel Selectivity	TIA603C:60dB@12.5KHz ETSI:60dB@12.5KHz
Inter-modulation	TIA603C:65dB ETSI:65dB
Block	≤ -84 dB
Spurious Response Anti-Interference	TIA603C:70dB ETSI:70dB
Rated Output Power	1000mW
Rated Audio Distortion	≤ 3%
