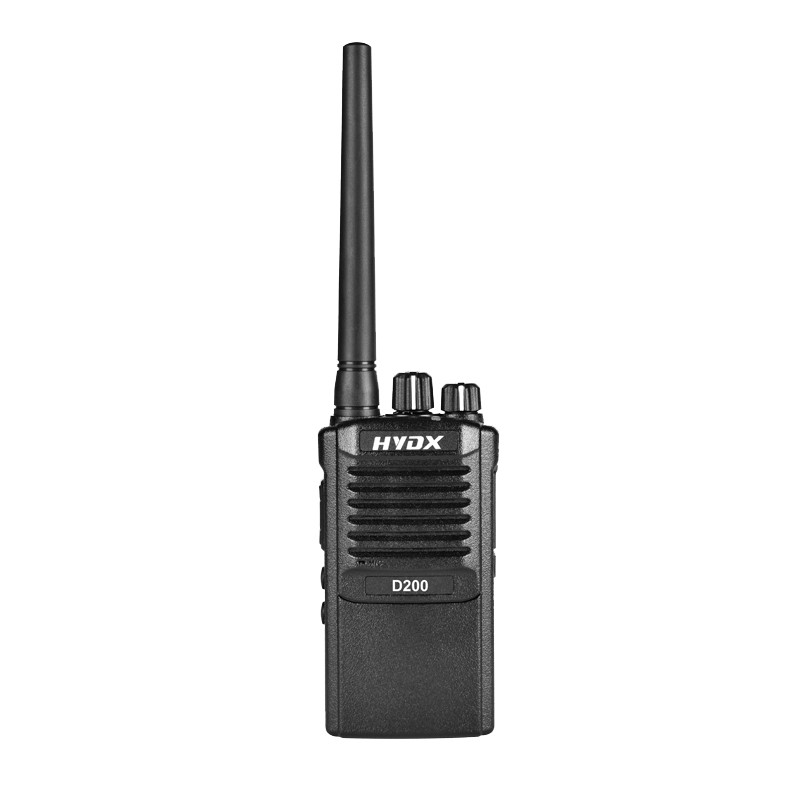

HYDX Digital DMR two way radio handheld transceiver commercial design
Brand:
HYDXItem NO.:
D200Order(MOQ):
200Payment:
T/T,L/C,Credit Card,PayPal,Western Union,CasProduct Origin:
ChinaColor:
BlackShipping Port:
Xiamen/ShenzhenLead Time:
70~90daysWeight:
270DMR Digital Amateur Long Range Two Way Radio
Product Description:
·HYDX D200 Digital DMR Radio Frequency Range: VHF/UHF
·Provide clearer voice communications in digital mode, throughout the coverage area.
·32 channels and 1024 contacts support you more options for communication and improve your work efficiency; DTMF makes the call more convenient.
·Large battery capacity.1600mAh battery enable normal use 36-48 hours standby; 18-24 hours typical use; continues use 5-7 hours.
·Rugged radio,can easily cope with complex outdoor environments.
·Long range 2 way radio,it can communicate with other walkie-talkies through the base station; support for longer-distance communication.
Main Functions
1.Stored 32 Channels
2.1024 Digital Contacts
3.Private/Group/All Call
4.Dual Capacity Direct Mode and Repeater
5.SMS(PC Editable and Check)
6.Call Records
7.Scanning and Auto Scanning Function
8.Call Alert
9.VOX
10.TOT
11.Power Save/Lower Power Indicator
12.Talkaround
13.Chinese/English/Korean
Technical Specification
GENERAL |
|
Frequency Range |
UHF:400-470MHz VHF:136-174MHz |
RF Output Power | H:≤5W L:≤1W |
Channels | 32 |
Channel Spacing | Wide:25KHz Narrow:12.5KHz |
CTCSS/DCS | 50 CTCSS / 105 DCS |
Antenna Impedence | 50Ω |
Operating Temperature | -20℃+50℃ |
Operating Voltage | DC 7.4V |
Battery Type | 1600mAh |
Dimension(Excluding antenna) | 132(H)×62(W)×40(D)mm |
Weight(Battery,Antenna Including) | About 270g |
TRANSMITTER |
|
Output Power |
H:≤5W L:≤1W |
FM Noise |
≥ 35 dB@12.5KHz |
Transmit Spurious Emission | ≤ -30 dB@1GHz-4GHz |
Rated Audio Distortion | ≤ 5% |
Adjacent Channel Power | ≤ -60 dB@12.5KHz |
RECEIVER | |
Reference Sensitivity | ≤ -120 dBm@12.5K |
Adjacent Channel Selectivity | ≥ 65 dB |
Inter-modulation response immunity | ≤ -55 dB |
Block |
≤ -84 dB |
S/N | ≥35 dB@12.5K |
Rated Output Power | ≤1000mW |
Rated Audio Distortion | ≤5% |
Two-way Radio Walkie Talkie Gift Box, 10 pcs / carton.
* 1 x HYDX D200
* 1 x Antenna
* 1 x Battery
* 1 x Charger
* 1 x Belt Clip
* 1 x Hand Strap
* 1 x User Manual
* 1 x Adapter
