Brand:
HYDXItem NO.:
F30Order(MOQ):
2000Payment:
T/T,L/C,Credit Card,PayPal,Western Union,CasProduct Origin:
ChinaColor:
Black/WhiteShipping Port:
Xiamen/ShenzhenLead Time:
30~45Weight:
122PMR446 FRS Display Mini Commercial Two-Way Radios
Product Description:
·Compatible with Any the Same Channel Radio: Model F30 for adults have 22 FRS/16 PMR/80 RCM channels plus 50sets of CTCSS tones/159sets of DCS tones (privacy codes), you can communicate with other FRS radios regardless of brand by being on the same channel and privacy code.

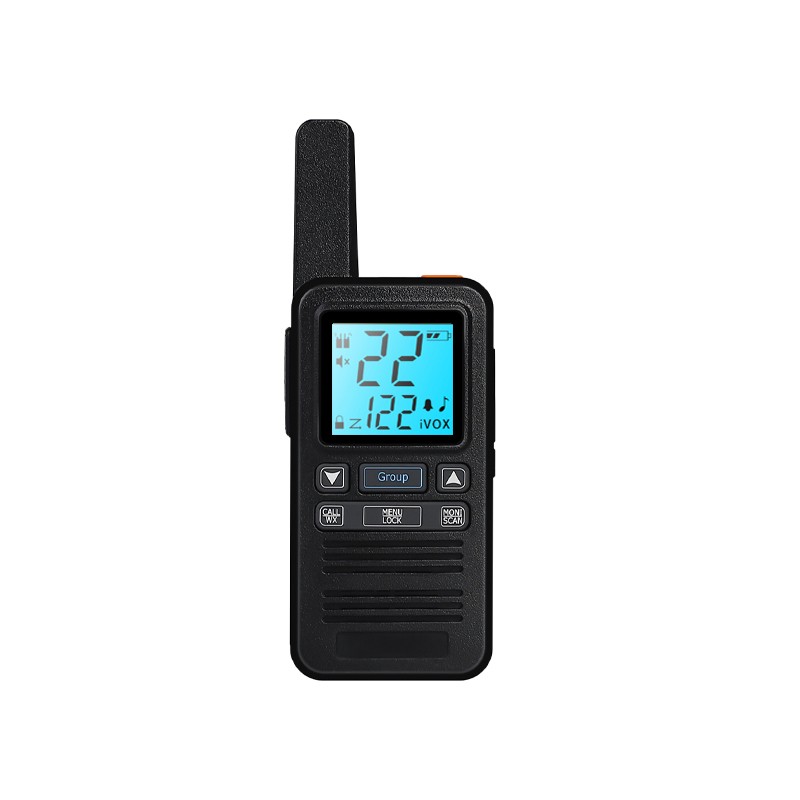

`More Features and User-Friendly Design: Push to talk (PTT) button; 8 adjustable volumes; 10 call tone settings; Keypad lock. This walkie talkie has bold blue back-lit LCD screen provides high visibility in night. Type-C cable ,easy for charging.
·Long Rang Walkie Talkies: Walkie talkies can reach 3 miles communication range in open areas such as rural areas, suburbs or seaside, etc. where there is no shelter. If in cities or towns, walkie talkies can reach 0.6-1.2 miles. The actual distance depends on the obstruction of the current environment.
·Lightweight, Wide use: Small size and light weight, hard and durable shell, drop-proof. easy voice and sound activation transmission (VOX) with 3 sensitivity levels for hands-free operation.this walkie talkies provides long range communication and clear sound for hiking, biking, camping trip, road trip, cruise ship and so on. It is also a great communication tool for adults and the elder to talk to others at home.
Main Functions
1.FRS/PMR/RCM Version
2.NOAA (FRS Version)
3.Roger Beep
4.Call Beep
5.CTSCC/DCS
6.Type-C Charging
7.Group Call
8.Monitor
9.VOX
10.Scanning
11.LCD Display
12.Keyboard Lock
Technical Specification
GENERAL |
|
Frequency Range |
FRS/PMR/RCM |
Channels | 22CH/16CH/80CH |
Channel Spacing | Narrow:12.5KHz |
CTCSS/DCS | 50 CTCSS / 159 DCS |
Operating Voltage | DC 3.7V |
Battery Type | Li-ion |
Battery Capacity | 1600mAh |
Battery Life | 2hours@3030 |
Operating Temperature | -30℃+60℃ |
Dimension (Excluding antenna) | 48(H)×37(W)×134(D)mm |
Weight (Belt Clip Including) | About 122g |
TRANSMITTER |
|
Carrier Output Power |
H: ≥1.7W@4.2V L: 0.3W-1W@4.2V |
TX Current |
H: ≤1.35A L: ≤1.0A |
Carrier Frequency Tolerance | ±800Hz |
Adjacent Channel Power | ≤-65dB |
Modulation Mode | 8KΦF3E |
Mic Sensitivity |
11±2mV |
Modulation Limiting | ±2.5K@12.5KHz |
Audio Response | +1dB~-3dB |
Audio Distortion | ≤5% |
RECEIVER | |
Reference Sensitivity | -123 dBm@12dB SINAD |
Rated Audio Distortion | ≤5% |
RX Current - Rated | <420mA |
Standby Current | <60mA |
Channel Inhibition | ≥-8dB |
Adjacent Channel Selectivity |
≥ 65 dB |
Blocking | ≥ 84 dB |
CSQ Hum & Noise | <-40dB@12.5KHz |
Packing&Delivery
Two-way Radio Walkie Talkie Gift Box, 40 pcs / carton.
* 2 x HYDX F30
* 1 x Hand-Strap
* 2 x Battery
* 1 x Adapter
* 1 x Type-C Cable
* 1 x User Manual
