![$this->product_detail['product_name']](/uploadfile/category/8367c097eb5e91b6a45a20c16b73145d.jpg)
Brand:
HYDXItem NO.:
H11Order(MOQ):
1000Payment:
T/T,L/C,Credit Card,PayPal,Western Union,CasProduct Origin:
ChinaColor:
BlackShipping Port:
Xiamen/ShenzhenLead Time：
30~45Weight：

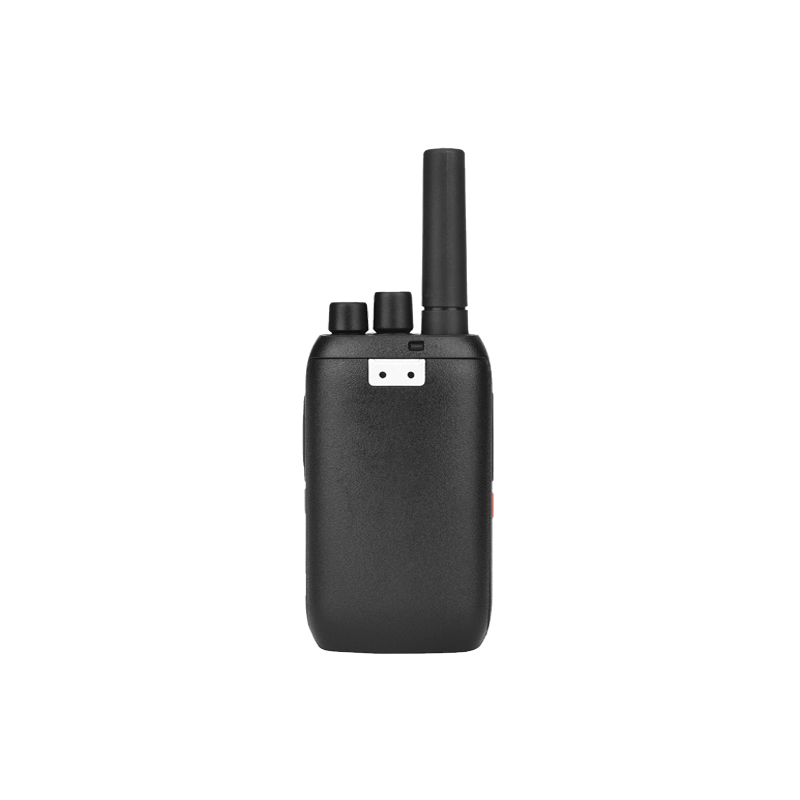

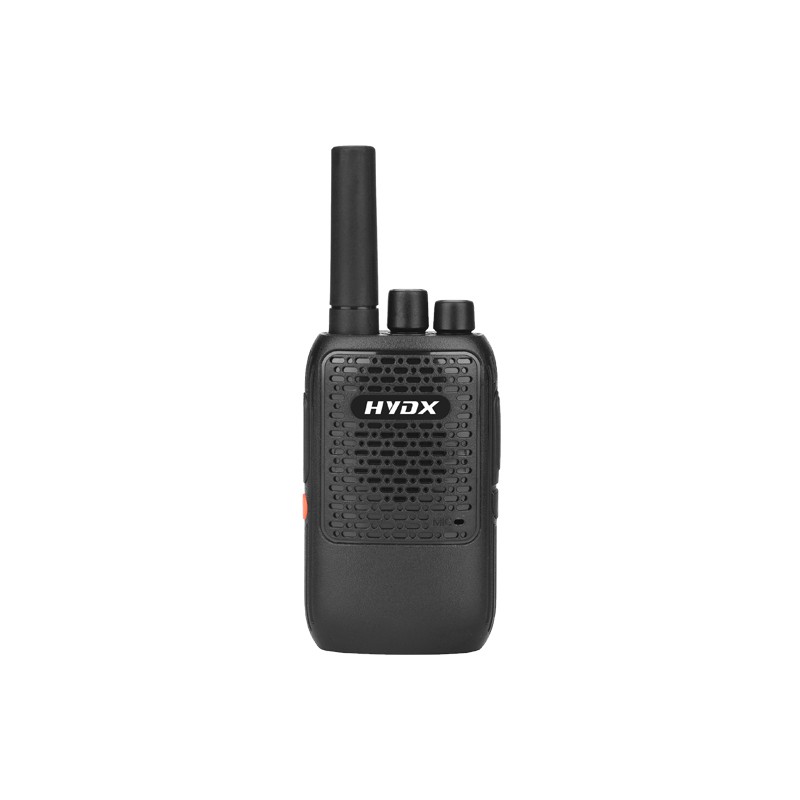

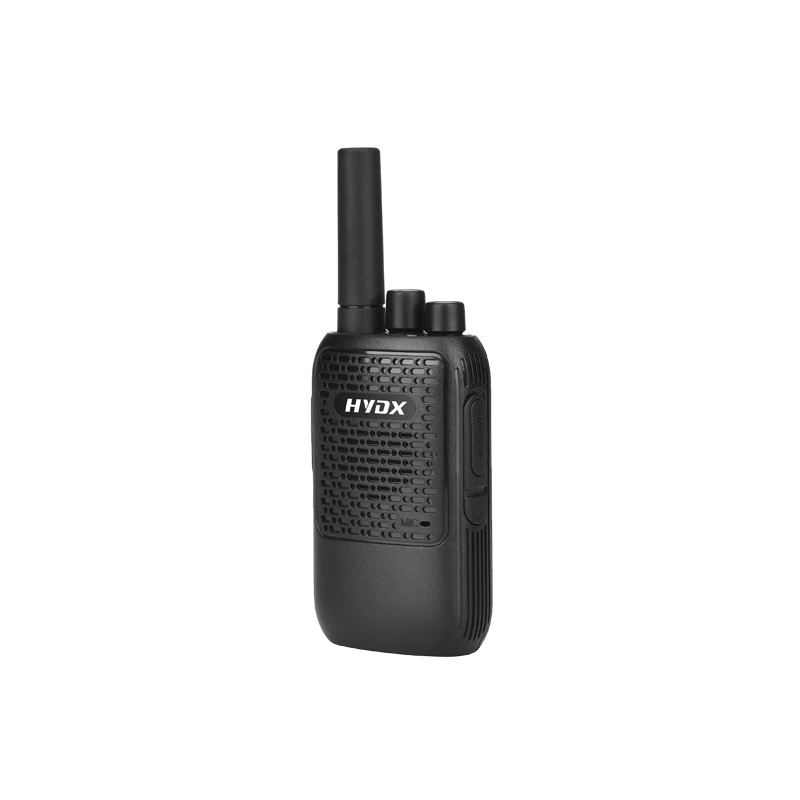

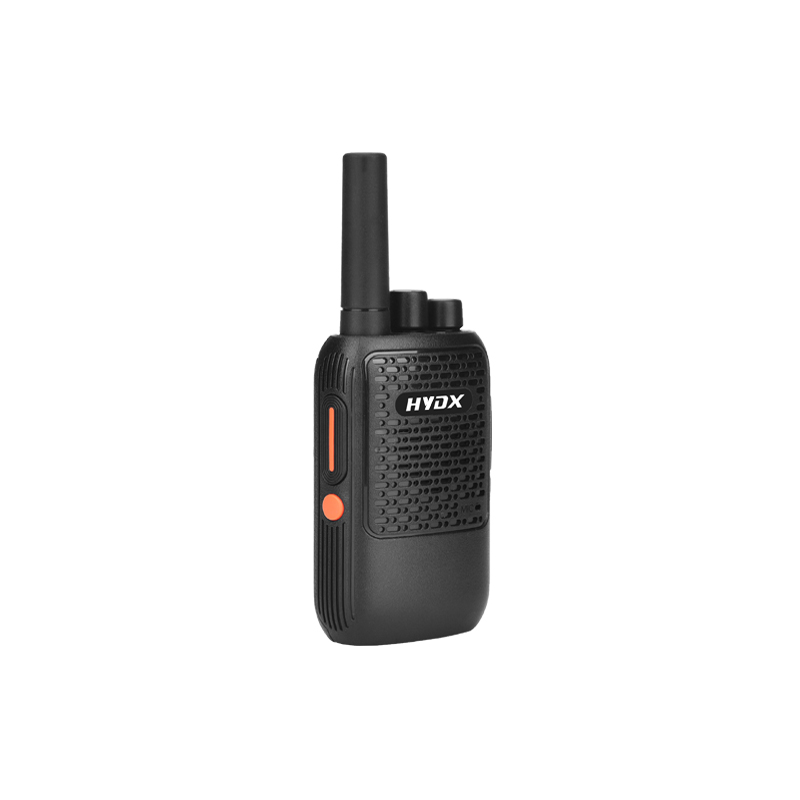

200UHF 2W FRS Rugged Commercial Two Way Radio
Product Description：
·HYDX H11 business walkie talkies feature a compact and light design;can be easily put into the pocket without snagging or bulging.
·Real 1200mAh cold resistant battery provides 12-14 hours of frequent use on a single charge.
·Type-c USB charging cable.
·The durable face shell is resistant to 1.5m drop and comfortable to hold. It is an economical and applicable walkie talkie.
Main Functions
1.400-470MHz/136-174MHz
2.Chinese/English voice report
3.High/Low Power Switchable
4.Compandor
5.Scrambler
6.16 Channels
7.VOX
8.CTCSS/DCS
9.Power Output 2W
10.Scanning
12.Wide/Narrow Bandwidth
13.Battery Save
Technical Specification
|
GENERAL |
|
| Frequency Range |
UHF:400-470MHz VHF:136-174MHz |
| RF Output Power | H:≤2W L:≤0.5W |
| Channels | 16 |
| Channel Spacing | Wide:25KHz Narrow:12.5KHz |
| CTCSS/DCS | 50 CTCSS / 105 DCS |
| Antenna Impedence | 50Ω |
| Operating Temperature | -30℃+60℃ |
| Operating Voltage | DC 3.7V |
| Battery Type | 1200mAh |
| Dimension(Excluding antenna) | 91.5(H)×53.5(W)×30.3(D)mm |
| Weight(Battery,Antenna Including) | About 200g |
|
TRANSMITTER |
|
| Output Power |
H:≤2W L:≤0.5W |
| Modulation Mode | F3E |
| Modulation Distortion | ≤ 5% |
| Spurious and Harmonics |
-65 dB |
| FM Noise | ≤ -45 dB |
| RECEIVER | |
| Reference Sensitivity | ≤ -121 dBm |
| Adjacent Channel Selectivity | ≤ -50 dB |
| Inter-modulation response immunity | ≤ -55 dB |
| S/N |
≥ 45 dB |
| Rated Output Power | ≤370mW |
| Rated Audio Distortion | ≤5% |
Packing&Delivery
Two-way Radio Walkie Talkie Gift Box, 10 pcs / carton.
* 1 x HYDX H11
* 1 x Antenna
* 1 x Battery
* 1 x Adapter
* 1 x Belt Clip
* 1 x Hand Strap
* 1 x User Manual
* 1 x Type-C Cable
