Brand:
HYDXItem NO.:
F10Order(MOQ):
1000Payment:
T/T,L/C,Credit Card,PayPal,Western Union,CasProduct Origin:
ChinaColor:
BlackShipping Port:
Xiamen/ShenzhenLead Time:
45~60Weight:
90.8Mini UHF Lightweight Commercial 2 Way Radio
Production Description:
·HYDX F10 is a cost-effective product with 1200mAh capacity batteries. It is lightweight, portable and free of license. It can be used indoors and in commercial establishments.
·Small walkie talkies; less than 0.6 inches thick;weighing only 0.26 pounds; it can be easily held by both adults and children.

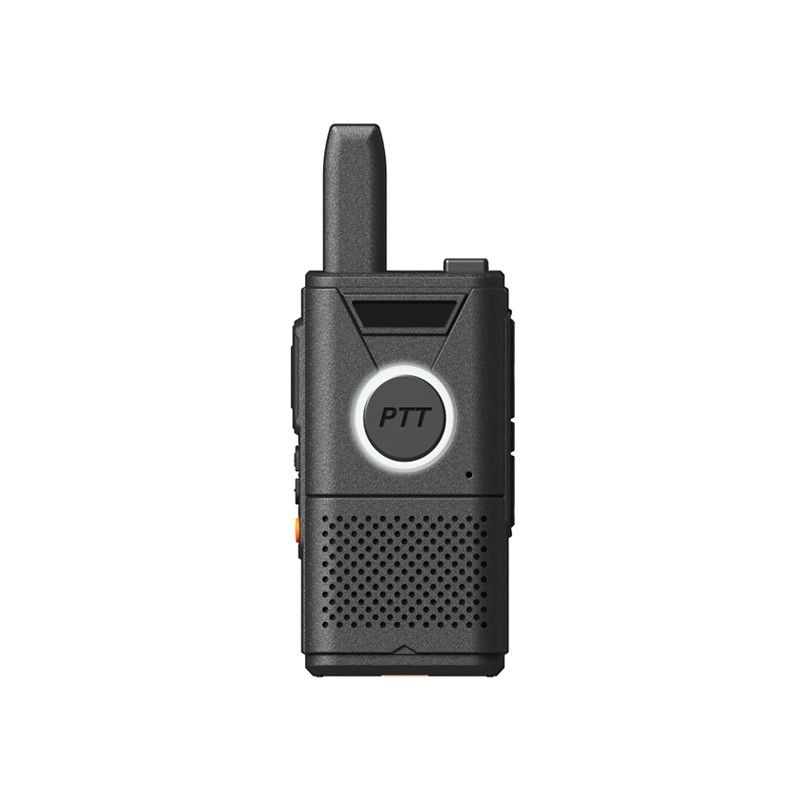

·Double PTT design; there is a large PTT button on the front of the walkie talkie; it can easily transmit and receive in winter even with gloves.

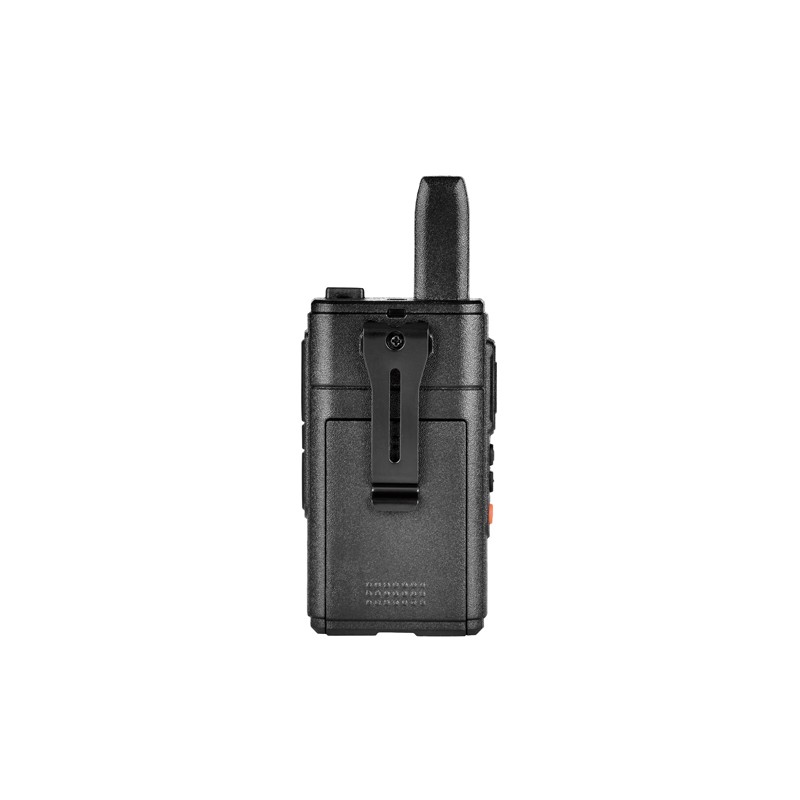

·Sturdy metal back clip; you can clip it to a belt or backpack; you don’t have to worry about the back clip breaking or deforming.
·1200 mAh Li-ion battery provides 10-12 hours of frequent use on a single charge.
·Key lock; long press the channel down button to hear two beeps, and you will fix the current channel; long press the channel down button again; after hearing one beep; you can change the channel normally.
·Compact;lightweight and easy to use;F10 walkie talkies a great option for occasional use at picnics;camping;short hikes or keep in touch with the children.
Main Functions
1.400-470MHz
2.Scrambler Function
3.Output Power 2W
4.16 Channel
5.Monitor
6.CTCSS / DCS
7.VOX
8.Scanning
9.USB-Cable
10.Double PTT design
General Specifications
GENERAL | |
Frequency Range |
UHF:400-470MHz |
RF Output Power | 2W |
Channel | 16 |
Channel Spacing | Wide:25KHz Narrow:12.5KHz |
CTCSS/DCS | 50 CTCSS / 105 DCS |
Antenna Impedance | 50Ω |
Operating Temperature | -20℃+60℃ |
Operating Voltage | DC 3.7V |
Battery Type | 1200mAh |
Dimension(Excluding antenna) | 97.5(H)×55(W)×20.5(D)mm |
Weight(Battery、Antenna including) | ABout 90.8g |
TRANSMITTER | |
RF Power |
2W |
Modulation Mode | F3E |
Modulation Distortion | ≤ 5% |
Frequency Stability | ±5ppm |
Adjacent Channel Power |
-60dB@12.5KHz -65dB@25KHz |
RECEIVER | |
Sensitivity | ≤ -121 dBm |
Adjacent Channel Selectivity | 55 dB |
Inter-modulation | 55 dB |
Block |
85 dB |
Rated Output Power | ≤500mW |
Rated Audio Distortion | ≤5% |
Packing&Delivery
* 1 x HYDX F10
* 1 x Battery
* 1 x Adapter
* 1 x Belt Clip
* 1 x Hand Strap
* 1 x User Manual
