Brand:
HYDXItem NO.:
H8Order(MOQ):
500Payment:
T/T,L/C,Credit Card,PayPal,Western Union,CasProduct Origin:
ChinaColor:
BlackShipping Port:
Xiamen/ShenzhenLead Time:
30~45Weight:

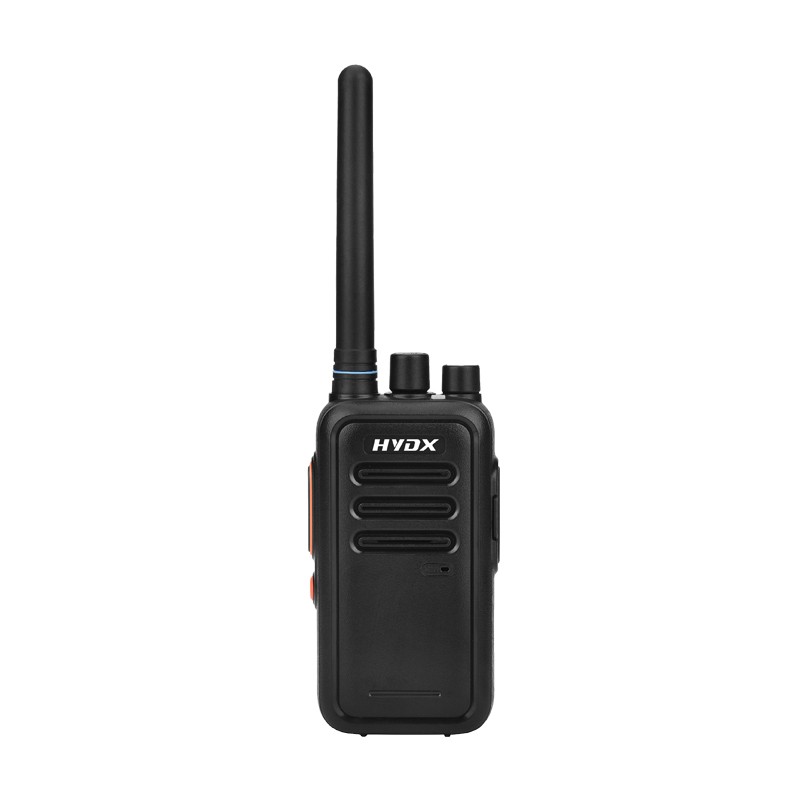

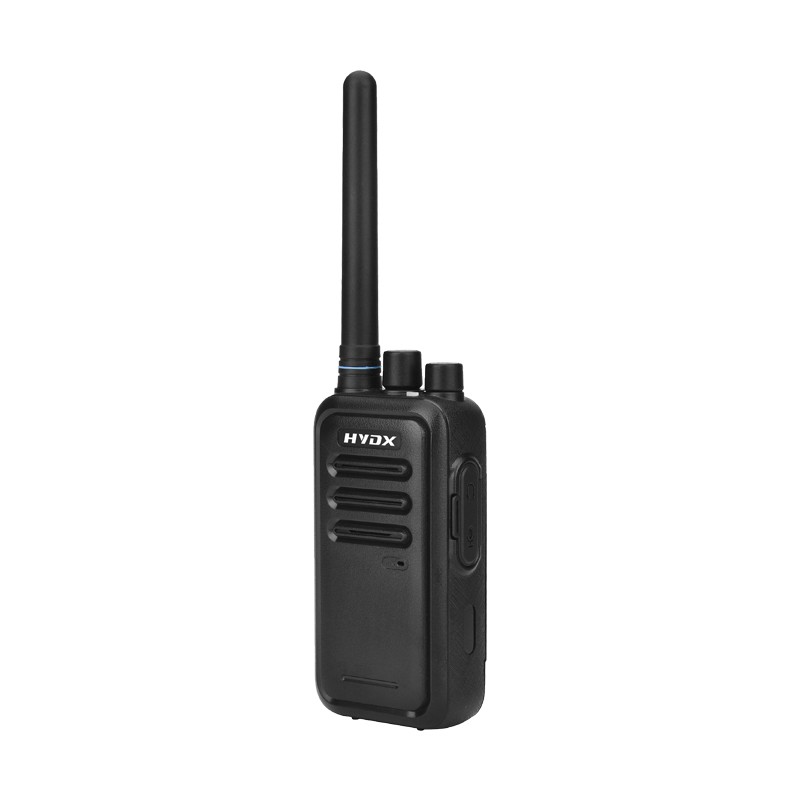

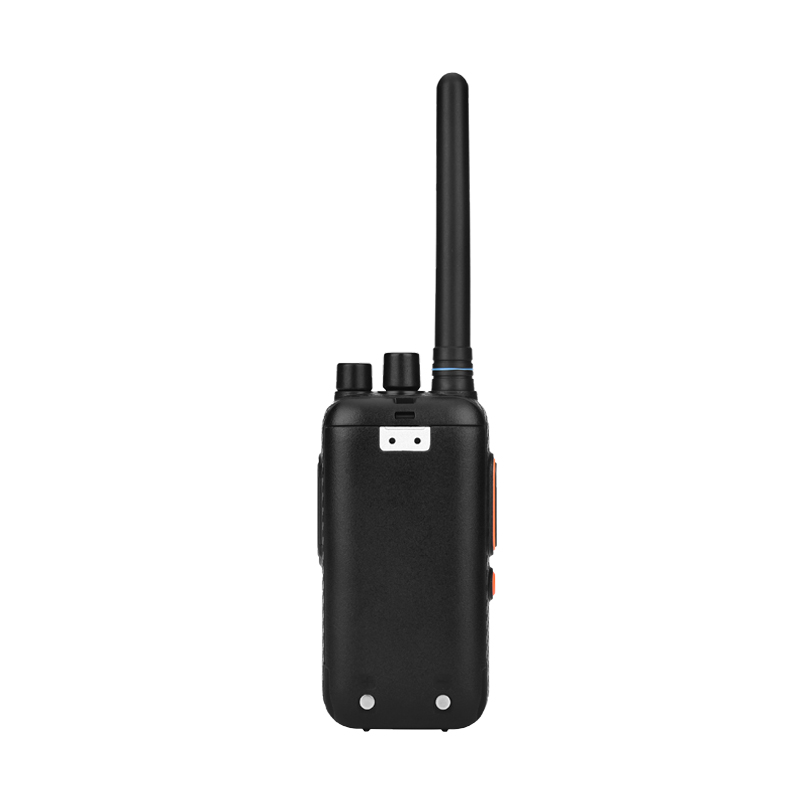

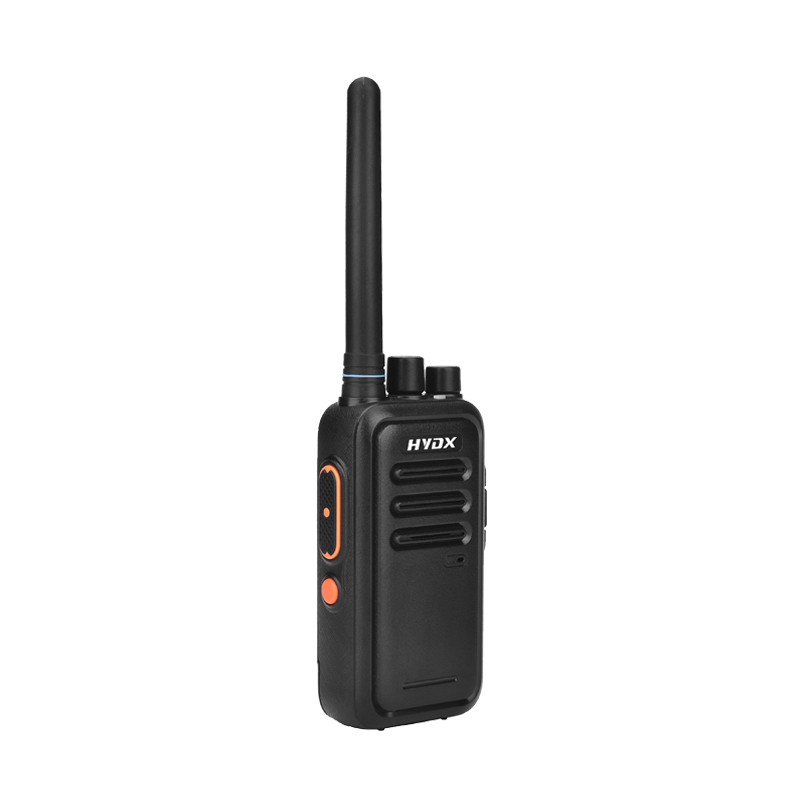

230UHF 5Watt Commercial Handheld Two-Way Radio
Product Description:
·Portable and Simple Walkie Talkie; work out of the box; simple enough that adults use them comfortably.
·Durable 2 Way Radio; rugged enclosure; one meter free fall; the walkie-talkie has no damage and can continue to work normally; longer service life.
·0-9 level voice activated transmit function allows real hands free operation; adjusting the level according to the environment allows you to get the best audio quality.
·Wide Range and Strong Penetrating Power; HYDX H8 walkie talkies can work in buildings and between concrete walls; provide you with good range and clear communication.
·Long Battery Life; with 1500 mAh large capacity Li-ion battery; usually takes 4-5 hours to fully charge; provides up to 24 hours of battery life; allows you to stay in communication through out the day.
Main Functions
1.400-470MHz/136-174MHz
2.Chinese/English voice report
3.High/Low Power Switchable
4.Compandor
5.Scrambler
6.16 Channels
7.VOX
8.CTCSS/DCS
9.Power Output 5W
10.Scanning
12.Wide/Narrow Bandwidth
13.Battery Save
Technical Specification
GENERAL |
|
Frequency Range |
UHF:400-470MHz VHF:136-174MHz |
RF Output Power | H:≤5W L:≤1W |
Channels | 16 |
Channel Spacing | Wide:25KHz Narrow:12.5KHz |
CTCSS/DCS | 50 CTCSS / 105 DCS |
Antenna Impedence | 50Ω |
Operating Temperature | -30℃+60℃ |
Operating Voltage | DC 7.4V |
Battery Type | 1500mAh |
Dimension(Excluding antenna) | 108(H)×58(W)×30(D)mm |
Weight(Battery,Antenna Including) | About 230g |
TRANSMITTER |
|
Output Power |
H:≤5W L:≤1W |
Modulation Mode | F3E |
Modulation Distortion | ≤ 5% |
Spurious and Harmonics |
-65 dB |
FM Noise | ≤ -45 dB |
RECEIVER | |
Reference Sensitivity | ≤ -123 dBm |
Adjacent Channel Selectivity | ≤ -65 dB |
Inter-modulation response immunity | ≤ -55 dB |
S/N |
≥ 45 dB |
Rated Output Power | ≤750mW |
Rated Audio Distortion | ≤5% |
Packing&Delivery
Two-way Radio Walkie Talkie Gift Box, 10 pcs / carton.
* 1 x HYDX H8
* 1 x Antenna
* 1 x Battery
* 1 x Charger
* 1 x Belt Clip
* 1 x Hand Strap
* 1 x User Manual
