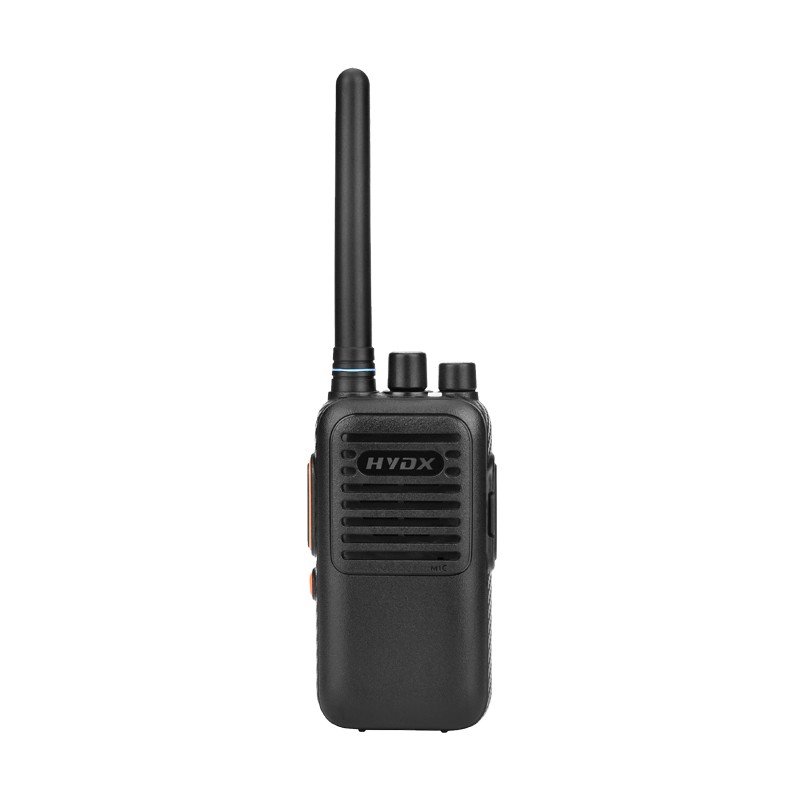

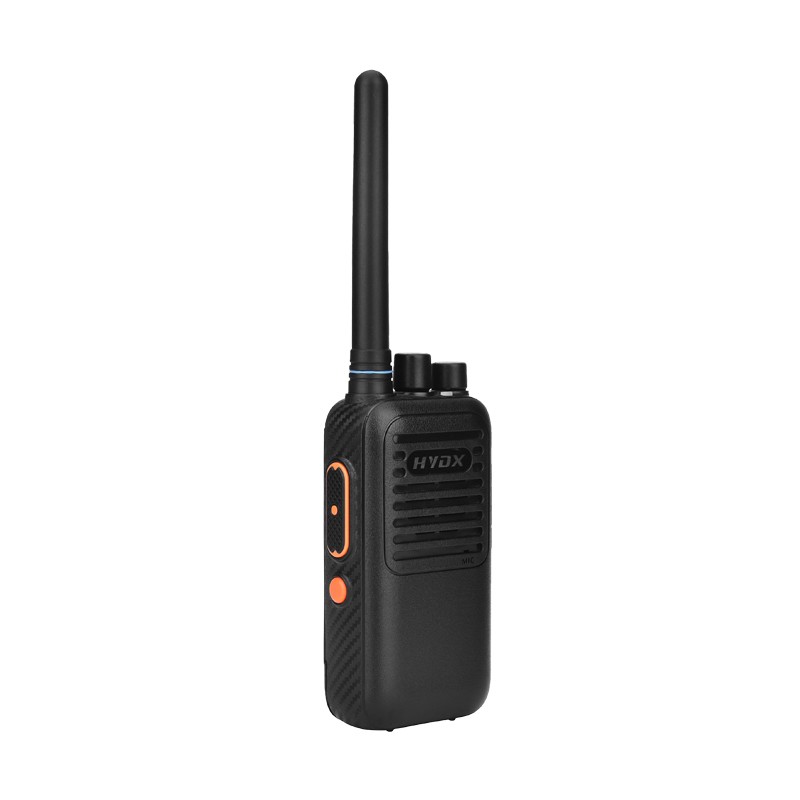

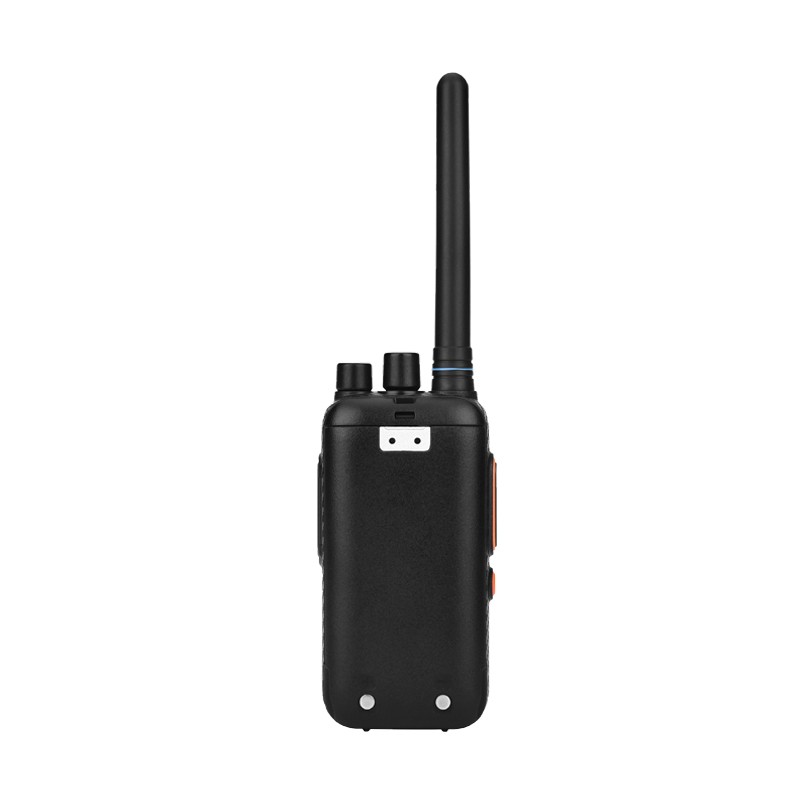

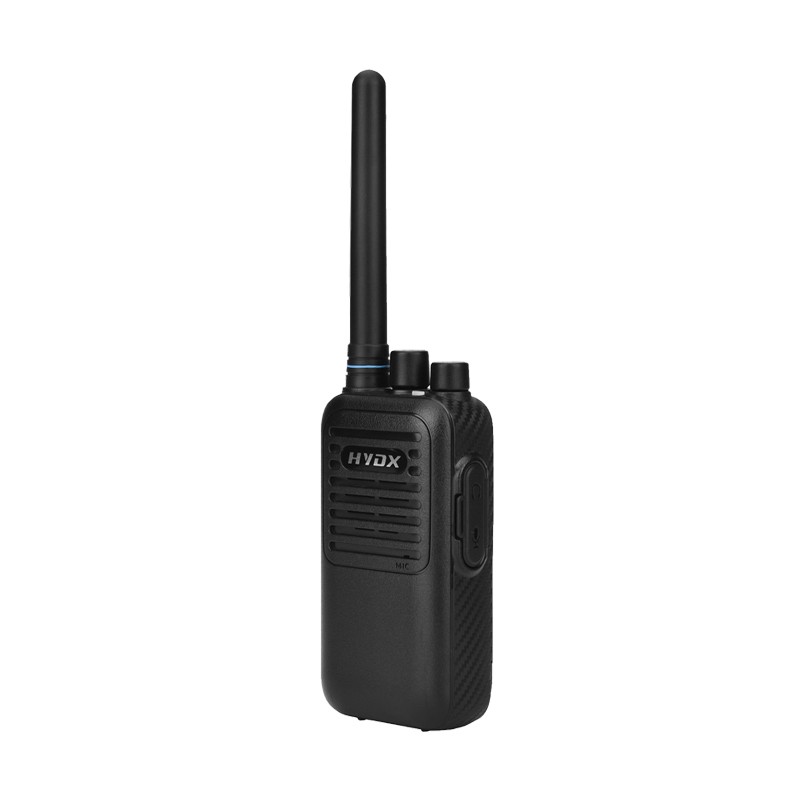

5W UHF Rugged Commercial Two Way Radio

5W Firm and durable uhf vhf 1500mAh battery rugged commercial walkie talkie

Brand:
HYDX
Item NO.:
H5
Order(MOQ):
500
Payment:
T/T,L/C,Credit Card,PayPal,Western Union,Cas
Product Origin:
China
Color:
Black
Shipping Port:
Xiamen/Shenzhen
Lead Time：
45~60
Weight：
230

Inquiry now

Product Detail

Product Description：

·Portable and Simple Walkie Talkie; work out of the box; simple enough that adults use them comfortably.
·Durable 2 Way Radio; rugged enclosure; one meter free fall; the walkie-talkie has no damage and can continue to work normally; longer service life.

·Wide Range and Strong Penetrating Power; HYDX H5 walkie talkies can work in buildings and between concrete walls; provide you with good range and clear communication.
·Long Battery Life; with 1500 mAh large capacity Li-ion battery; usually takes 4-5 hours to fully charge; provides up to 24 hours of battery life; allows you to stay in communication through out the day.

Main Functions

1.400-470MHz/136-174MHz

2.Chinese/English voice report

3.High/Low Power Switchable

4.Compandor

5.Scrambler

6.16 Channels

7.VOX

8.CTCSS/DCS

9.Power Output 5W

10.Scanning

12.Wide/Narrow Bandwidth

13.Battery Save

Technical Specification

GENERAL
Frequency Range	UHF:400-470MHz VHF:136-174MHz
RF Output Power	H:≤5W L:≤1W
Channels	16
Channel Spacing	Wide:25KHz Narrow:12.5KHz
CTCSS/DCS	50 CTCSS / 105 DCS
Antenna Impedence	50Ω
Operating Temperature	-30℃+60℃
Operating Voltage	DC 7.4V
Battery Type	1500mAh
Dimension(Excluding antenna)	108(H)×58(W)×30(D)mm
Weight(Battery,Antenna Including)	About 230g
TRANSMITTER
Output Power	H:≤5W L:≤1W
Modulation Mode	F3E
Modulation Distortion	≤ 5%
Spurious and Harmonics	-65 dB
FM Noise	≤ -45 dB
RECEIVER
Reference Sensitivity	≤ -123 dBm
Adjacent Channel Selectivity	≤ -65 dB
Inter-modulation response immunity	≤ -55 dB
S/N	≥ 45 dB
Rated Output Power	≤750mW
Rated Audio Distortion	≤5%
