uhf long range 5w commercial two way radio

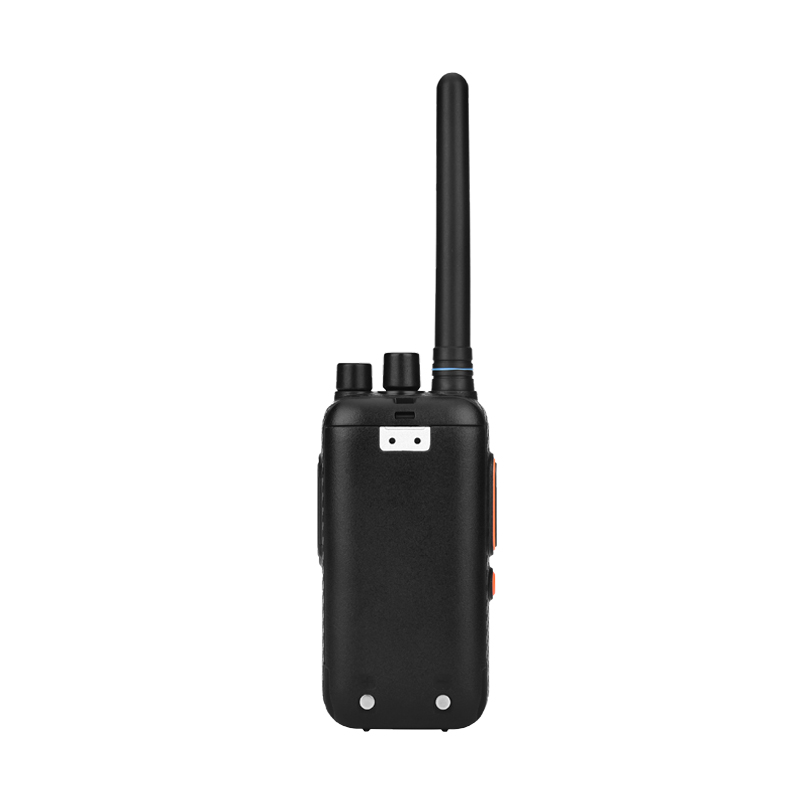

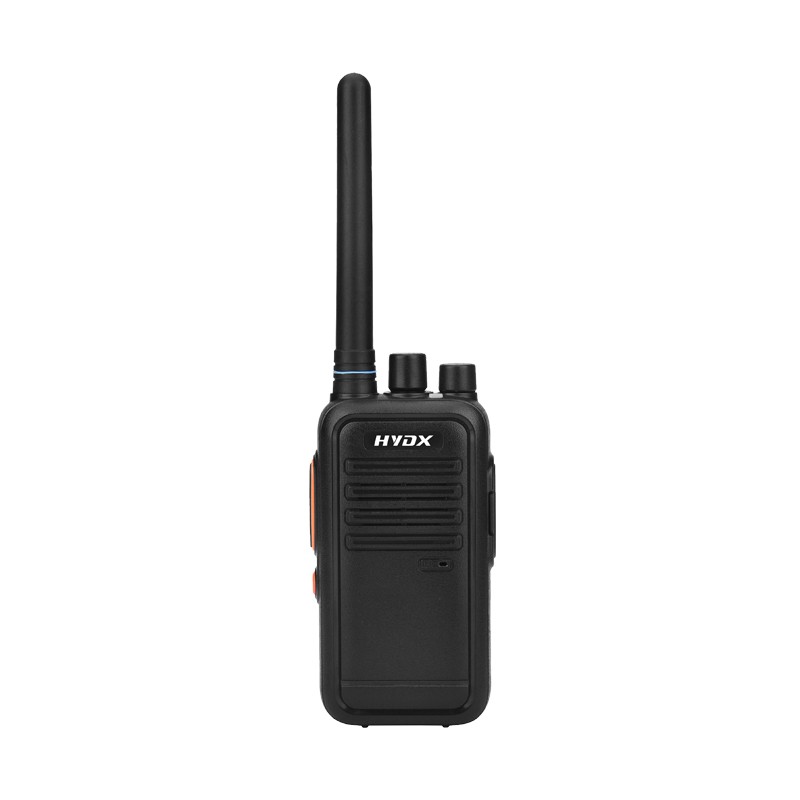

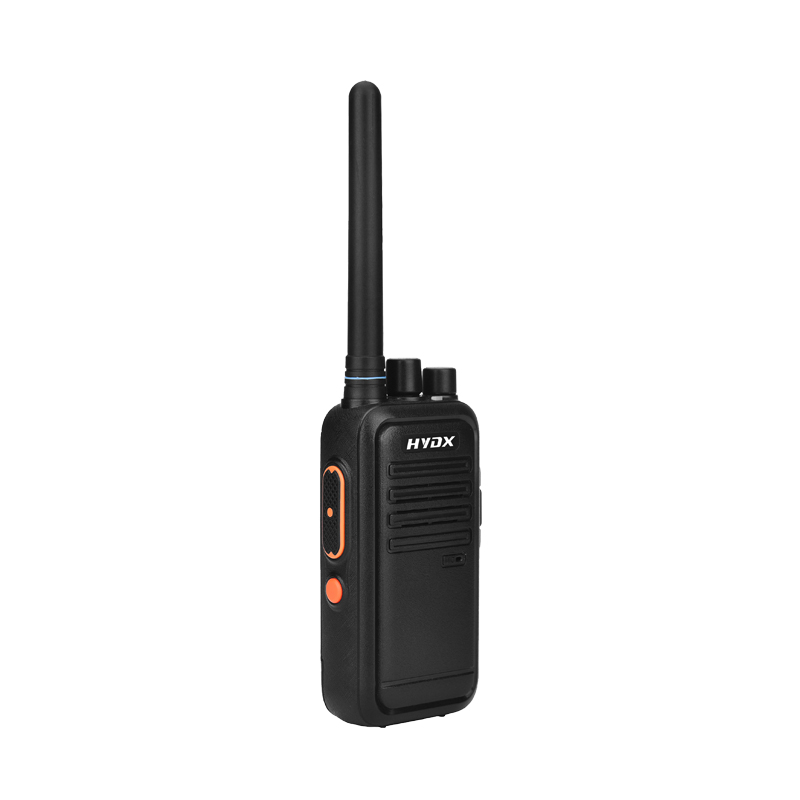

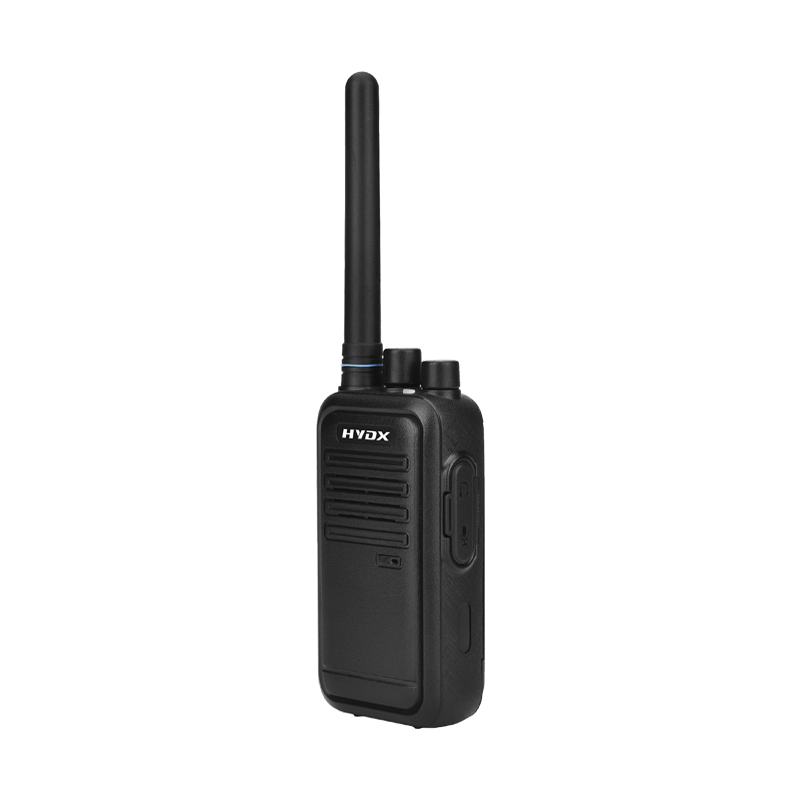

UHF VHF 5W Rugged Commercial Handheld Walkie Talkie

Long range 1500mAh UHF VOX security commercial organization handsfree 2 Way Radios

Brand:
HYDX
Item NO.:
H10
Order(MOQ):
500
Payment:
T/T,L/C,Credit Card,PayPal,Western Union,Cas
Product Origin:
China
Color:
Black
Shipping Port:
Xiamen/Shenzhen
Lead Time：
30~45
Weight：
230

Inquiry now

Product Detail

Product Description：

·Solid build portable walkie talkies; quality body and rotate button can withstand long time use and collision saving much money in the long run.

·0-9 level voice activated transmit function allows real hands free operation; adjusting the level according to the environment allows you to get the best audio quality
·Good reception and crystal transmission sound; strong penetration and audio keep you and your team always stay in contact with loud clarity sound quality in building or outdoor.
·Keep away from the irrelevant call;ensure you and your team have quiet and smooth talk.
·Durable belt clip and hand strap are convenient to carry; the charging base and adapter are convenient for you to charge it anywhere.

Main Functions

1.400-470MHz/136-174MHz

2.Chinese/English voice report

3.High/Low Power Switchable

4.Compandor

5.Scrambler

6.16 Channels

7.VOX

8.CTCSS/DCS

9.Power Output 5W

10.Scanning

12.Wide/Narrow Bandwidth

13.Battery Save

Technical Specification

GENERAL
Frequency Range	UHF:400-470MHz VHF:136-174MHz
RF Output Power	H:≤5W L:≤1W
Channels	16
Channel Spacing	Wide:25KHz Narrow:12.5KHz
CTCSS/DCS	50 CTCSS / 105 DCS
Antenna Impedence	50Ω
Operating Temperature	-30℃+60℃
Operating Voltage	DC 7.4V
Battery Type	1500mAh
Dimension(Excluding antenna)	108(H)×58(W)×30(D)mm
Weight(Battery,Antenna Including)	About 230g
TRANSMITTER
Output Power	H:≤5W L:≤1W
Modulation Mode	F3E
Modulation Distortion	≤ 5%
Spurious and Harmonics	-65 dB
FM Noise	≤ -45 dB
RECEIVER
Reference Sensitivity	≤ -123 dBm
Adjacent Channel Selectivity	≤ -65 dB
Inter-modulation response immunity	≤ -55 dB
S/N	≥ 45 dB
Rated Output Power	≤750mW
Rated Audio Distortion	≤5%
