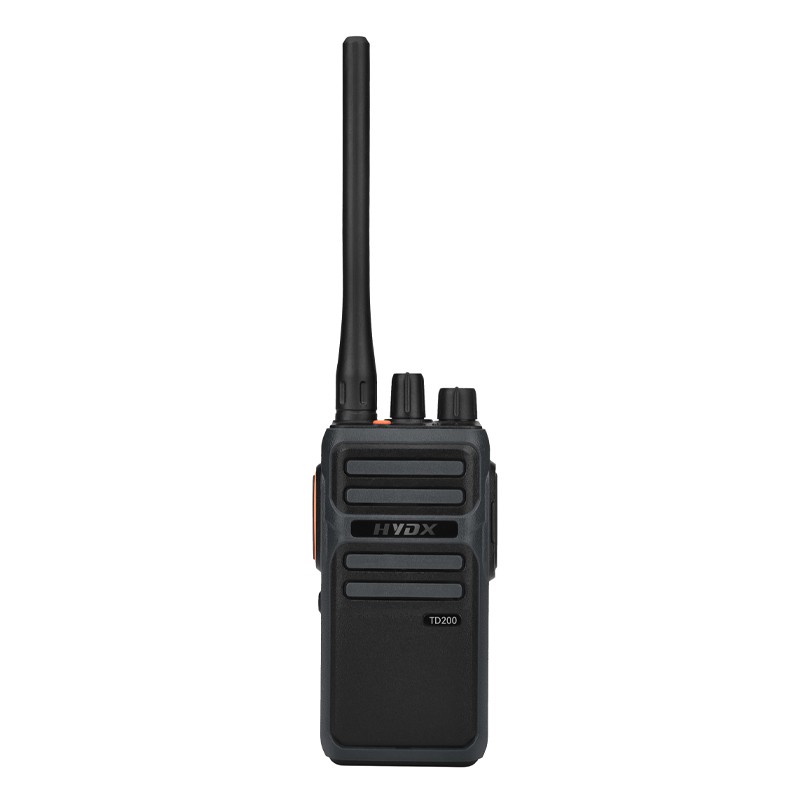

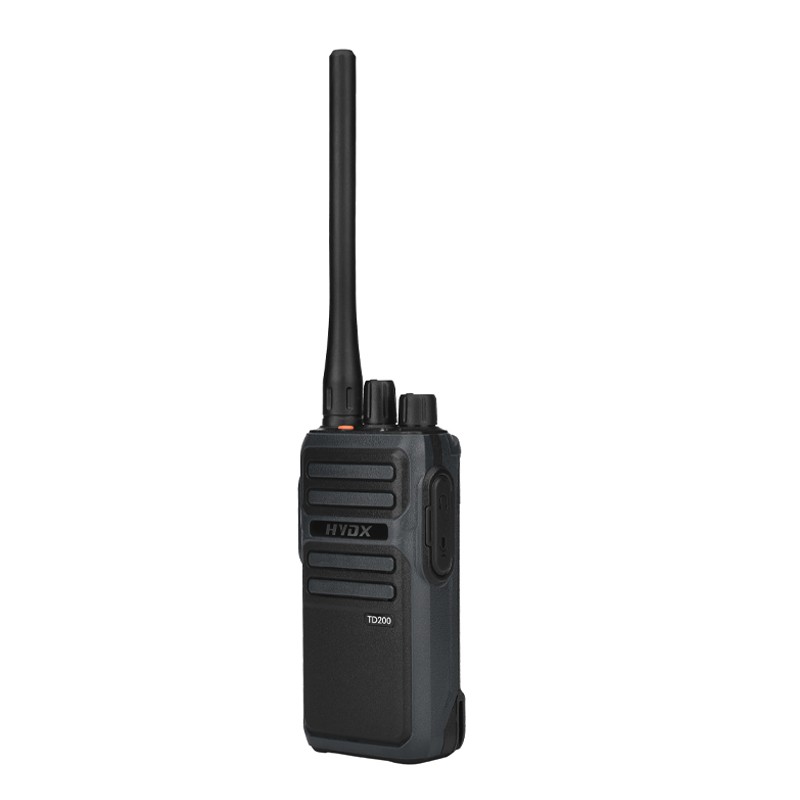

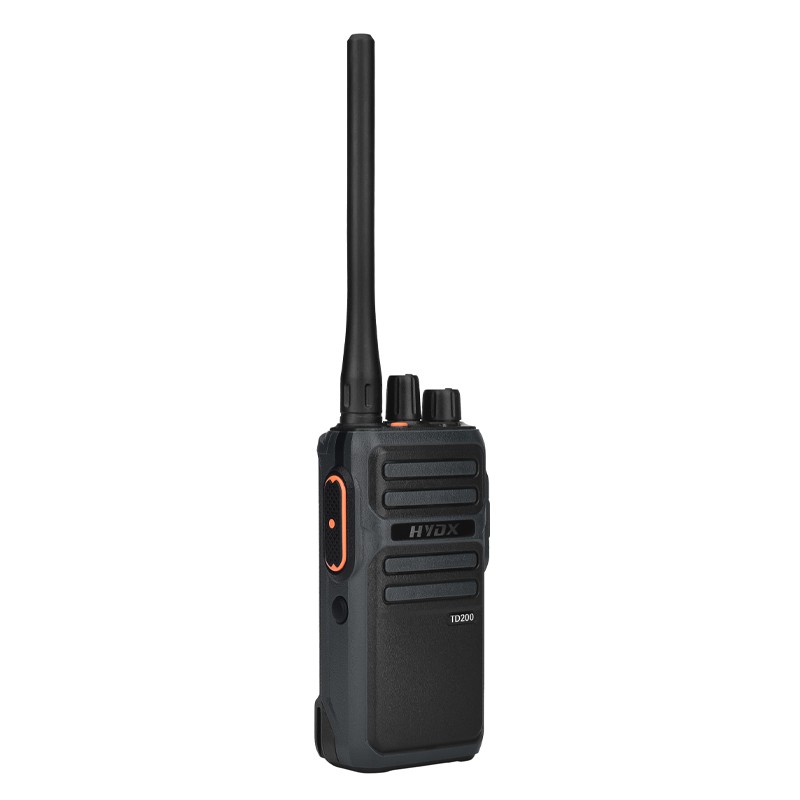

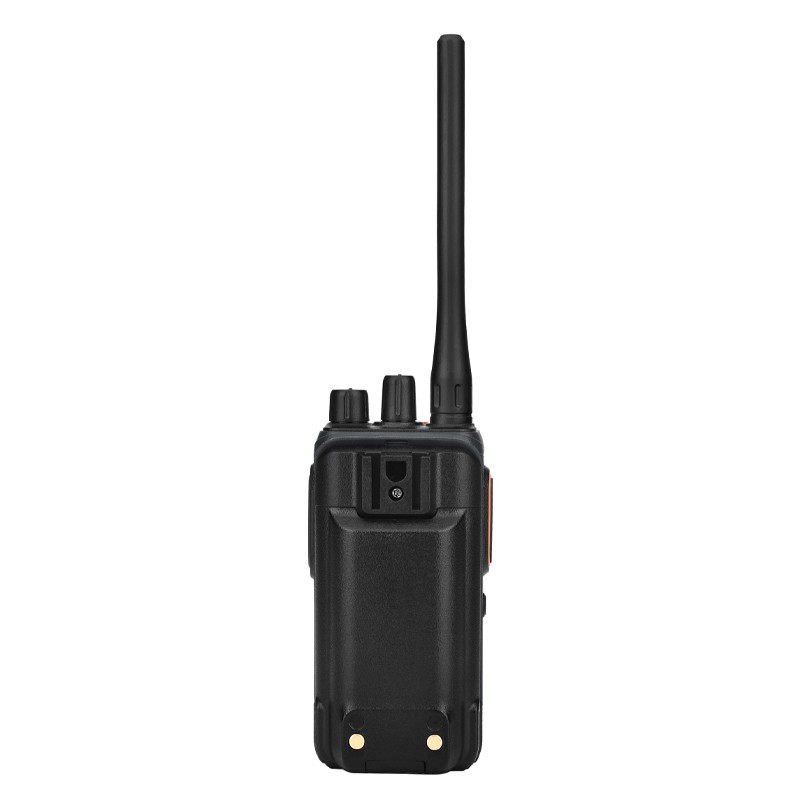

2705W Dual Color 2200mAh Recording Handheld DMR Radio Portable Digtial Walkie-Talkie
Product Description:
·Secure and clear commmunication; compared with the surrounding busy public frequency bands; it has a very safe and uncrowded communication channel.
·Support DMR digital and analog two methods; you can be compatible with most two way radio by setting the frequency; the TD200 two way radio could play a transitional role when replacing your old two way radios.
·Simple operation; sturdy and durable body 2 way radio; an excellent commercial walkie talkie; suitable for use in consturction site;supermarkets;warehouses and other workplaces.
·Support group call and all call; a total of 32 channels in 2 zones; you can set multiple groups to call your colleagues and friends separately.
·The digital frequency walkie talkie has a clearer sound quality; at the same time; the dual time slot function can realize two groups of independent calls on the same channel; saving frequency resources.
·2200mAh/3000mAh (optional) battery; offers 17 hours of standby time; power saver mode helps increase efficiency and preserve battery life.
·Handheld and portable radio; belt Clip and hand strap; easy to carry and secure; allows you to attach to belts and pockets; frees your hands.
Main Functions
1.400-470MHz
2.Stored 32 Channels Capacity
3.1024 Digital Contacts
4.Digital Encryption
5.Private/Group/All Call
6.Digital/Analog Mode
7.Emergency Alarm
8.Monitor
9.Battery Save
10.Scanning
11.VOX
12.Alone Worker
13.DTMF
14.Recording
Technical Specification
GENERAL |
|
Frequency Range |
UHF:400-470MHz |
Channel Capacity | 32 |
Channel Spacing | 12.5kHz |
Operating Voltage | DC 7.4V |
Battery Type | 18650 |
Battery Capacity | 2200mAh/3000mAh (optional) |
Output Current | 400mA |
Charging Time | 4-6 hours |
Battery Life@5/5/90 |
Analog:13h/Digital:17h |
Operating Temperature | -20℃+50℃ |
Audio Power Output | ≤1W@16Ω |
Dimension | 124(H)×58(W)×38(D)mm |
Weight | About 270g |
TRANSMITTER |
|
Carrier Output Power |
H:≤4W L:≤1W |
Carrier Frequency Tolerance | ≤±300Hz@200~500Hz |
Adjacent Channel Power |
≥60dB@12.5kHz ≥65dB@25kHz |
Modulation Mode |
11K0F3E@Analog (FM)
12.5kHz Data/Voice:7K60FXW@4FSK Digital |
TX FSK Error | ≤5% |
Audio Distortion | ≤5% |
RECEIVER | |
Static Sensitivity | ≥ -117dBm(Eer≤5%) |
Co-Channel Inhibition | ≥-12dB |
Adjacent Channel Selectivity |
>60dB@12.5kHz >65dB@25kHz |
Inter-modulation Response Rejection | ≥50dB |
Blocking | ≥84dB |
Receiver Spurious Emission |
<-57dBm@[<1GHz] <-47dBm@[>1GHz] |
Packing&Delivery
Two-way Radio Walkie Talkie Gift Box, 10 pcs / carton.
* 1 x HYDX TD200
* 1 x Antenna
* 1 x Battery
* 1 x Charger
* 1 x Belt Clip
* 1 x Hand Strap
* 1 x User Manual
* 1 x Adapter
