Brand:
HYDXItem NO.:
A6Order(MOQ):
200Payment:
T/T,L/C,Credit Card,PayPal,Western Union,CasProduct Origin:
ChinaColor:
BlackShipping Port:
Xiamen/ShenzhenLead Time:
45~60Weight:

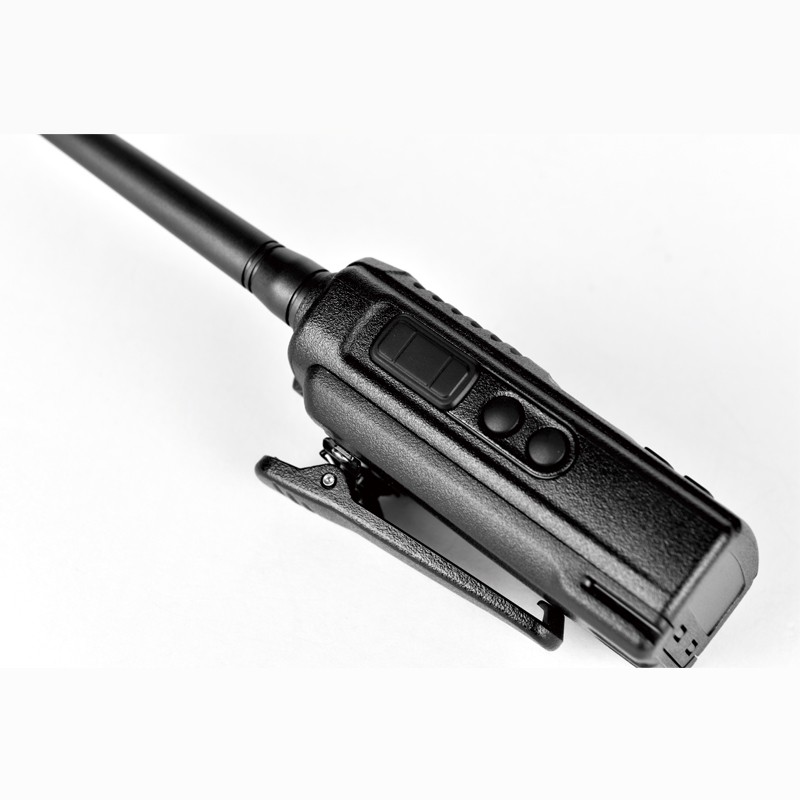

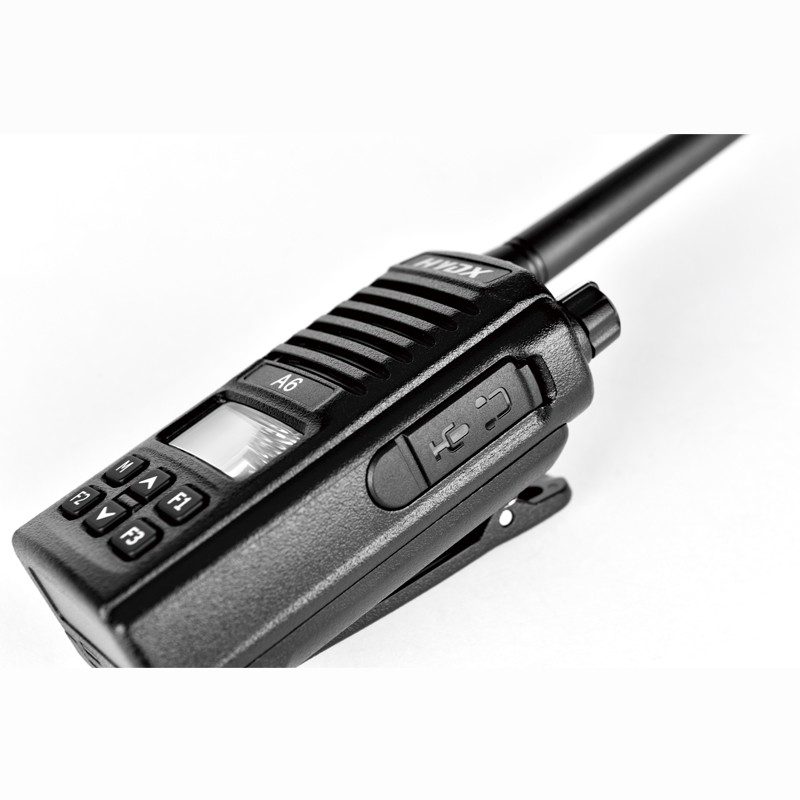

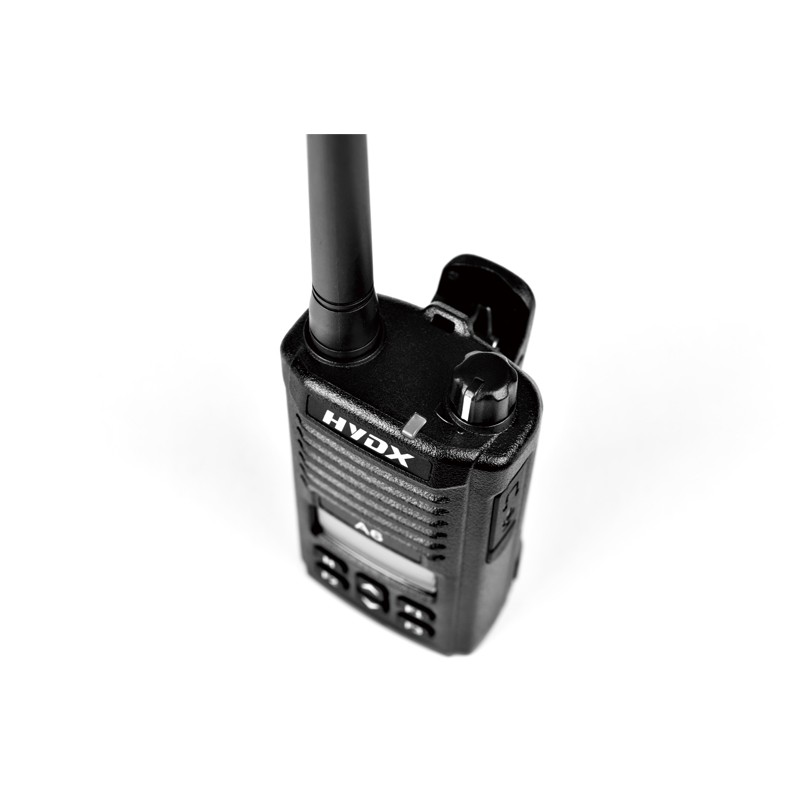

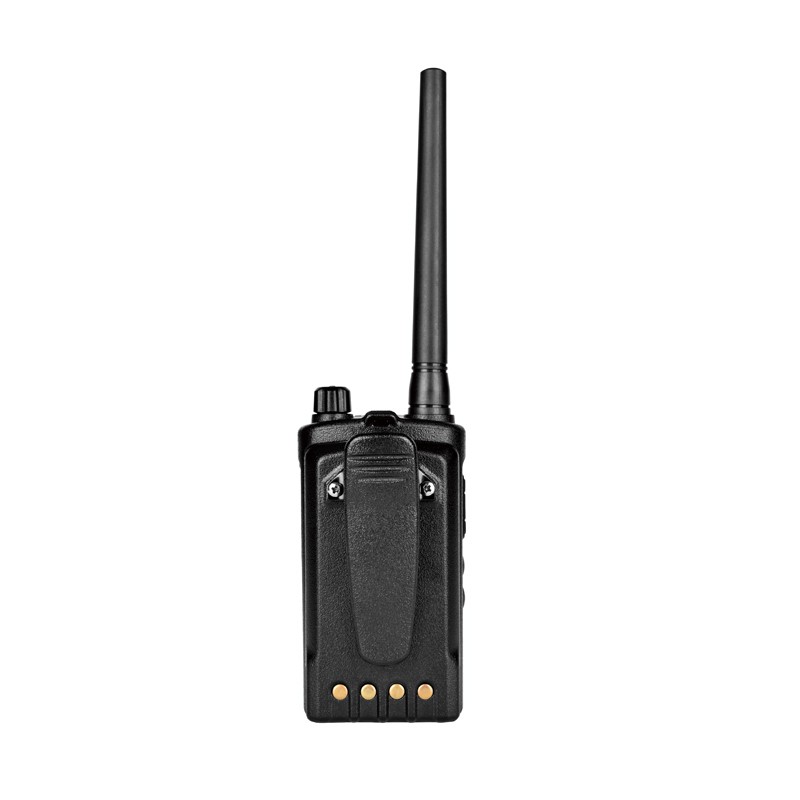

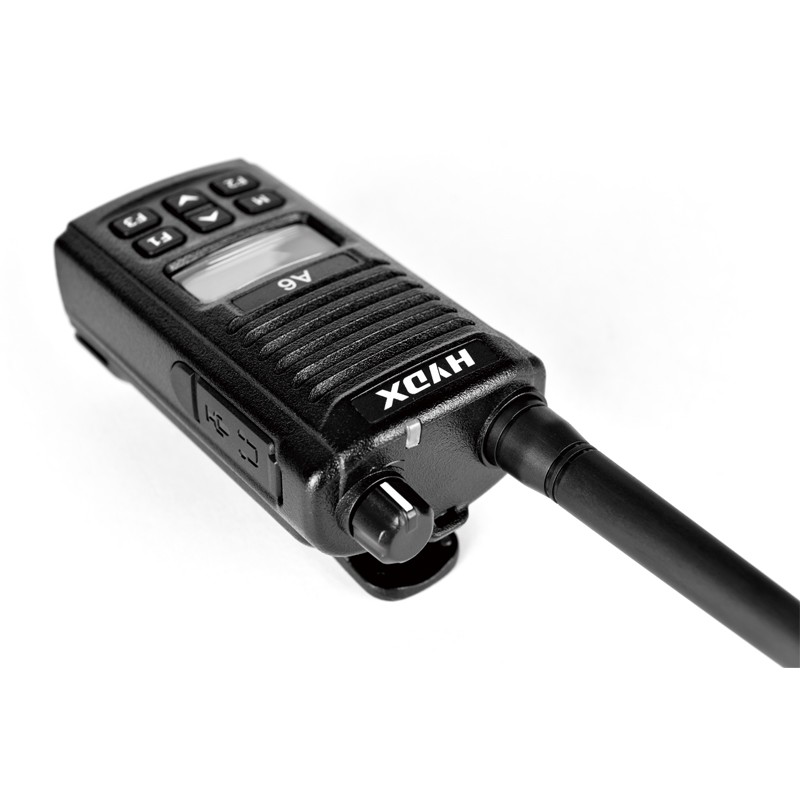

230Handheld UHF Professional FM Transceiver 2 Way Radio
Product Description:
·We call HYDX-A6 a business little expert, with a display and rich functions. By side key editing, we can quickly open the custom function, support listening to FM broadcast, and can be applied to various life office scenes.
·Professional two way radio with 199 capacity channels; FM radio,fun to listen and always with great signal to enrich your daily life when you have nothing to do
·Long range with perfect size make them easy to hold; super compact for long life using; gets long range with the included antenna and exceptional ·1600 mAh rechargeable Li-ion battery; each radio includes its accessory
VOX Mode for hands-free provides great reception and transmit clarity to keep on communicate with fellow co-worker; awesome for business like security team;construction; fire departments
·Easy to set keyboard with your desired;If you need,you can also lock the keypad to prevent channel change caused by accidental touch.
·1600mAh Li-ion battery provides 8-12 hours continuous use for your outside activity.
Main Functions
1.VFR/MR/CH Working Modes
2.Side Key Programming
3.Password Setting
4.Tail Elimination
5.DTMF Decode/Encode
6.PTT ID/ANI
7.FM Radio
8.Key Lockout
9.BCLO
10.Scan/Priority Scan
11.High/Low Power
12.Wide/Narrow Bandwidth
13.VOX/IVOX
14.TOT
15.CTCSS 50/DCS 105
Technical Specification
GENERAL |
|
Frequency Range |
UHF:400-470MHz VHF:136-174MHz |
RF Output Power | H:≤5W L:≤2W |
Channels | 199 |
Channel Spacing | Wide:25KHz Narrow:12.5KHz |
CTCSS/DCS | 50 CTCSS / 105 DCS |
Antenna Impedence | 50Ω |
Operating Temperature | -20℃+50℃ |
Operating Voltage | DC 7.4V |
Battery Type | 1600mAh |
Dimension(Excluding antenna) | 112.5(H)×57.5(W)×36.5(D)mm |
Weight(Battery,Antenna Including) | About 230g |
TRANSMITTER |
|
Output Power |
H:≤5W L:≤2W |
Modulation Mode | F3E |
FM Noise |
≤ -45 dB |
Modulation Distortion | ≤ 5% |
Spurious and Harmonics | -65 dB |
RECEIVER | |
Reference Sensitivity | ≤ -123 dBm |
Adjacent Channel Selectivity | ≤ -65 dB |
Inter-modulation response immunity | ≤ -55 dB |
S/N |
≥ 45 dB |
Rated Output Power | ≤750mW |
Rated Audio Distortion | ≤5% |
Two-way Radio Walkie Talkie Gift Box, 10 pcs / carton.
* 1 x HYDX A6
* 1 x Antenna
* 1 x Battery
* 1 x Charger
* 1 x Belt Clip
* 1 x Hand Strap
* 1 x User Manual
* 1 x Adapter
