Brand:
HYDXItem NO.:
A31Order(MOQ):
200Payment:
T/T,L/C,Credit Card,PayPal,Western Union,CasProduct Origin:
ChinaColor:
Black/RedShipping Port:
Xiamen/ShenzhenLead Time:
45~60Weight:

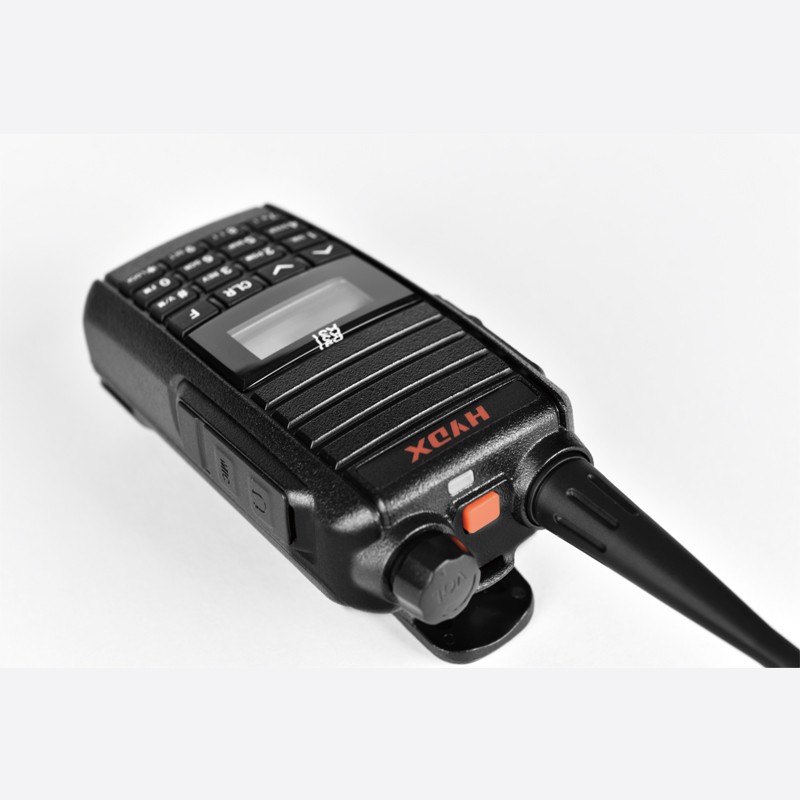

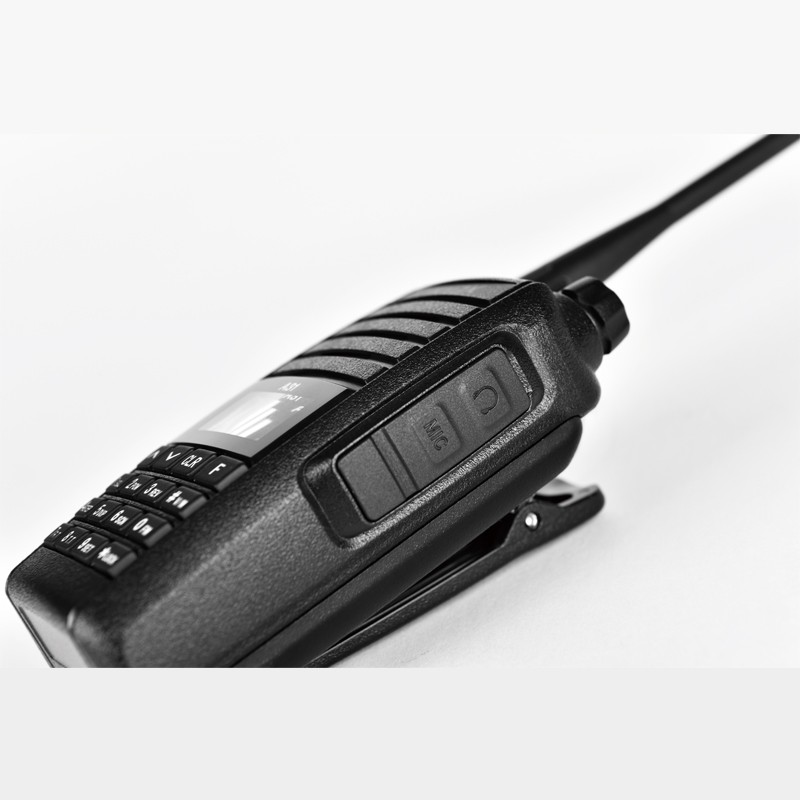

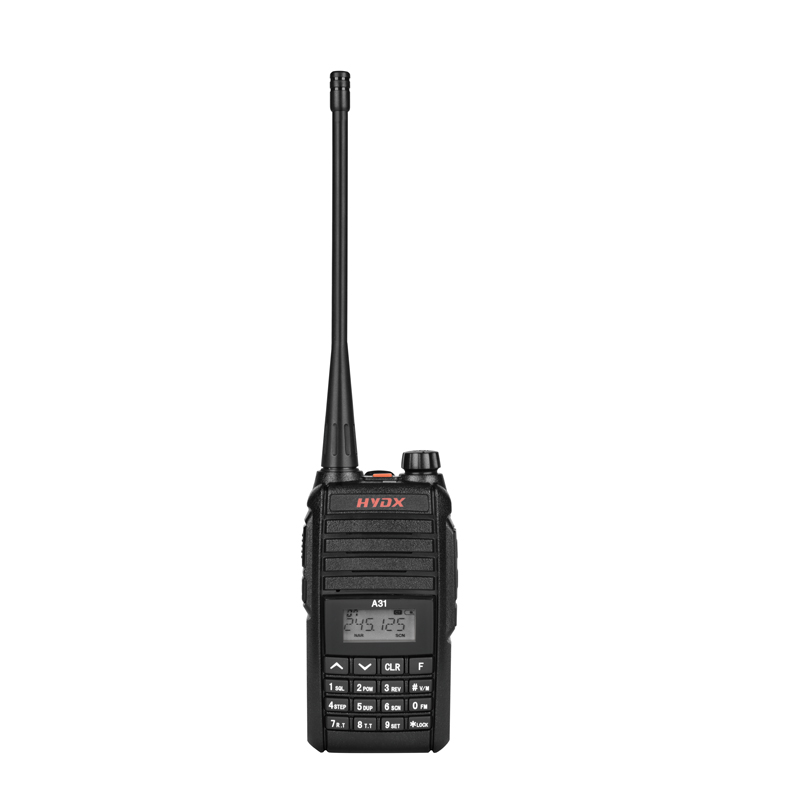

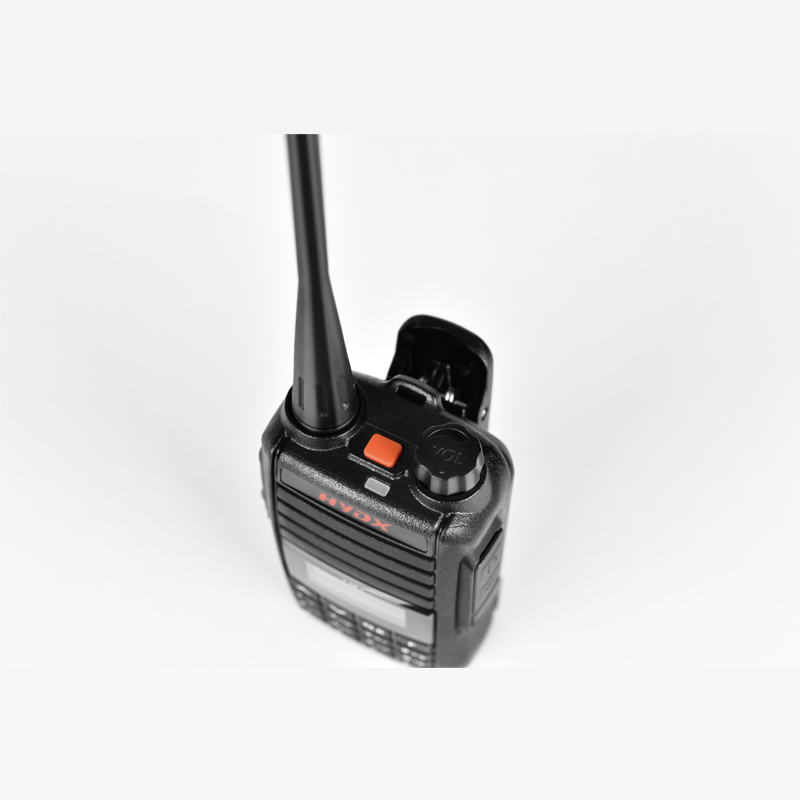

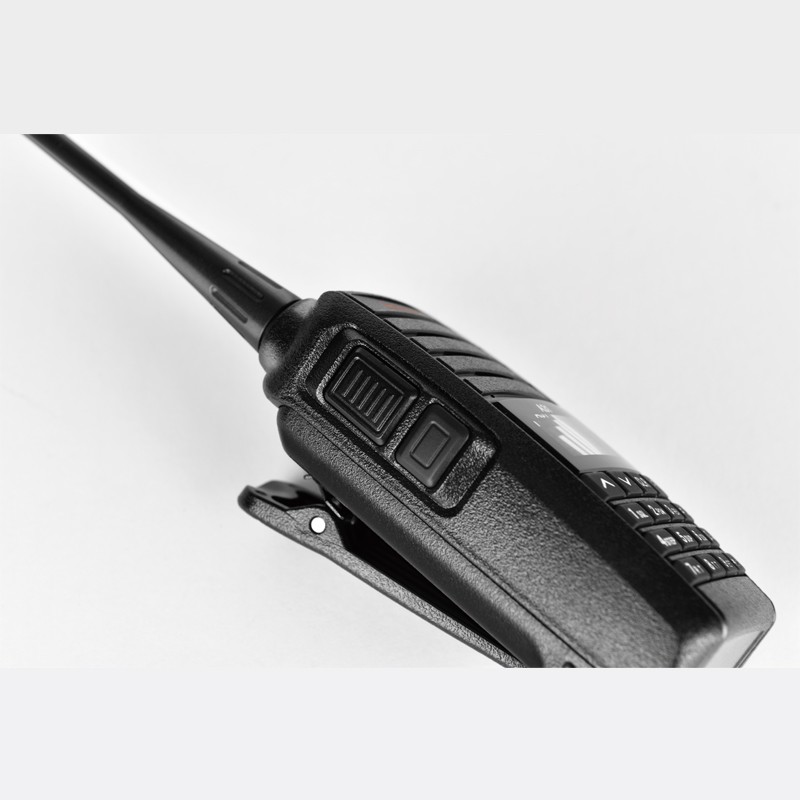

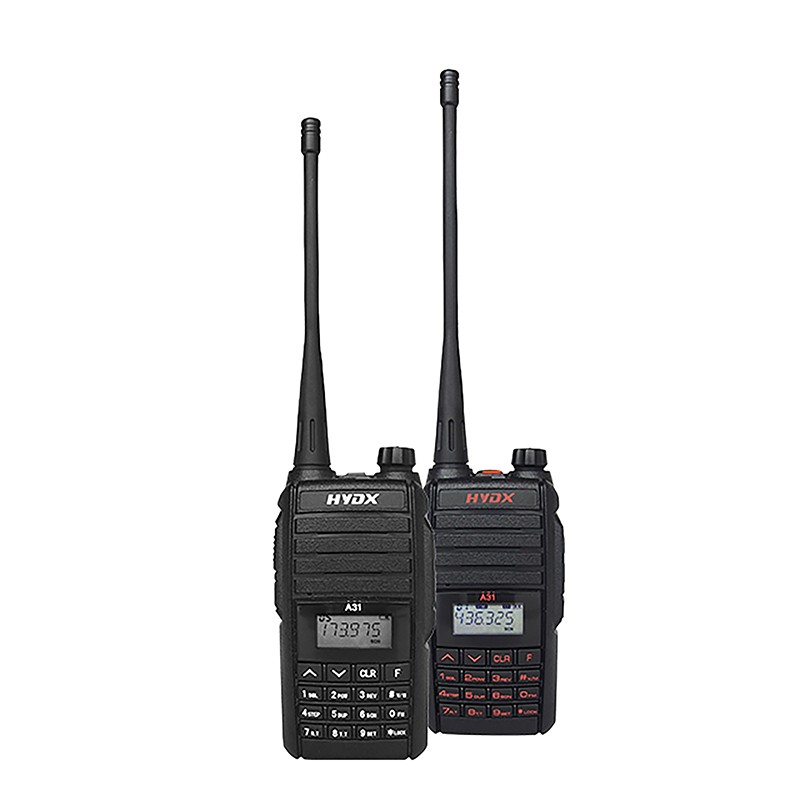

230UHF 5W Handheld Commercial Ham Radio
Product Description:
·Long Range Walkie Talkies.Left Side PTT allows you to make "direct calls" to the same channel members. GROUP PTT allows you to talk to other people simultaneously even they are not on the same channel. Ideal for on-site business applications, help work crews connect, coordinate and collaborate to get the job done right.
·Portable 2 Way Radios.Rotate the channel knob easy to switch the channel, adjustable volume level keeps sounds clarity without noise and distortion. The speakers on these handsets are crisp and loud, making it easy to hear an incoming signal even when used in noisy industrial environments. The display can easily read the status of the channel and setting. Anti-drop two-way radio can withstand harsh environments.
·Rechargeable Walkie Talkies.Worry-free Day Night Shift with a large-capacity 1600mAh lithium rechargeable battery. Working Time: 8-12 hours, Standby Time: 36-48 hours. Less than 4-5h to be fully charged quickly. Communicate effortlessly in working areas like hotel, school security,market,construction area and concert.
Main Functions
1.400-520MHz/245MHz/136-174MHz
2.Power Password Setting
3.Side-Key Programming
4.DTMF Encode/Decode
5.Key Lock Function
6.Reverse Frequency/Offset
7.BCLO
8.Scan/Priority Scan
9.Emergency Alert
10.PTT ID/ANI
11.Tail Elimination
12.VOX/IVOX
13.TOT
14.CTCSS/DCS
Technical Specification
GENERAL |
|
Frequency Range |
UHF:400-520MHz/245MHz VHF:136-174MHz |
RF Output Power | H:≤5W L:≤2W |
Channels | 199 |
Channel Spacing | Wide:25KHz Narrow:12.5KHz |
CTCSS/DCS | 50 CTCSS / 105 DCS |
Antenna Impedence | 50Ω |
Operating Temperature | -20℃+50℃ |
Operating Voltage | DC 7.4V |
Battery Type | 1600mAh |
Dimension(Excluding antenna) | 110.5(H)×58.5(W)×35.6(D)mm |
Weight(Battery,Antenna Including) | About 230g |
TRANSMITTER |
|
Output Power |
H:≤5W L:≤2W |
Modulation Mode | F3E |
FM Noise |
≤ -45 dB |
Audio Distortion | ≤ 5% |
Spurious and Harmonics | -65 dB |
RECEIVER | |
Reference Sensitivity | ≤ -123 dBm@25K |
Adjacent Channel Selectivity | ≤ -65 dB |
Inter-modulation response immunity | ≤ -55 dB |
S/N |
≥ 45 dB |
Rated Output Power | ≤750mW |
Rated Audio Distortion | ≤5% |
Two-way Radio Walkie Talkie Gift Box, 10 pcs / carton.
* 1 x HYDX A31
* 1 x Antenna
* 1 x Battery
* 1 x Charger
* 1 x Belt Clip
* 1 x Hand Strap
* 1 x User Manual
* 1 x Adapter
