Brand:
HYDXItem NO.:
A815Order(MOQ):
500Payment:
T/T,L/C,Credit Card,PayPal,Western Union,CasProduct Origin:
ChinaColor:
Green/BlaceShipping Port:
Xiamen/ShenzhenLead Time:
30~45Weight:

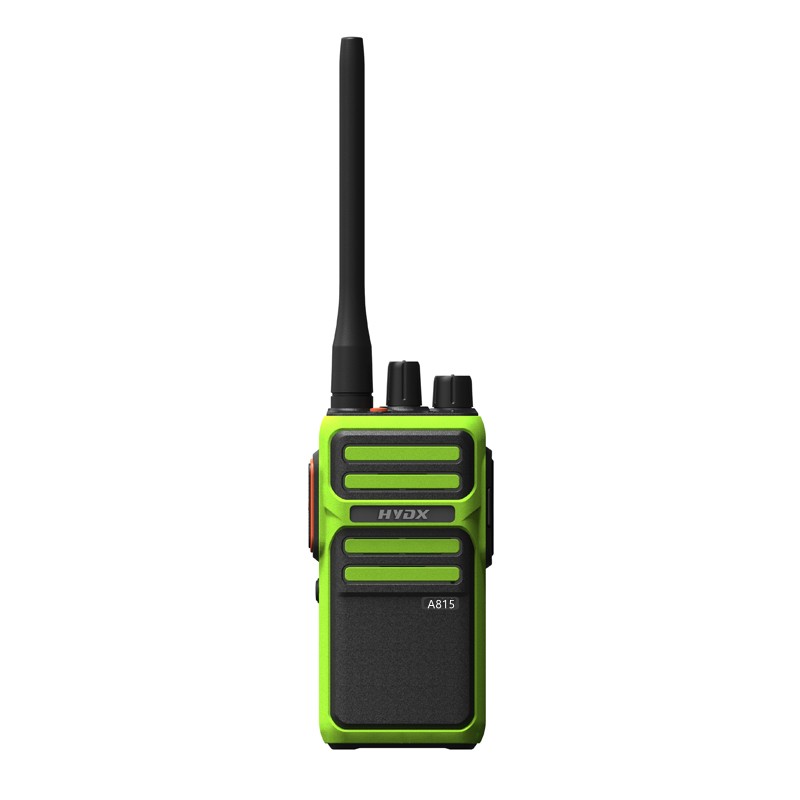

230Powerful GMRS Handheld Long-range Two Way Radio
Product Description:
·2200mAh long lasting battery walkie talkies; 20 hours of continuous talk; up to 150 hours of standby time;USB charging interface.
·Great sound quality; squelch and acoustic tube earpieces offer clear and loud sound even in noisy environment
·Long range 2 way radio; enhanced integrated antenna provides long distance and wide coverage.
·Rugged and sturdy; robust body and thickened PC plastic shell resist shock; vibration and dust; can be used for a long time.
·Battery Save Function,If you know you'll be away from a charger for an extended period and you want to make sure your radio will last, just turn on Power saving mode. This way, you won’t have to worry about a low battery.
·Low Battery Warning,Radio peppers you with warnings as the battery power gets low. The idea is to alarm you: Either charge the battery, save your work, and shut down.
·Channel lockout can avoid channel confusion caused by accidental touch.
VOX enables normal calls without PTT key.
Main Functions
1.400-470MHz
2.Chinese/English voice report
3.High/Low Power Switchable
4.Compandor
5.Scrambler
6.16 Channels
7.VOX
8.CTCSS/DCS
9.BCLO
10.Scan
12.Wide/Narrow Band
13.VOX
14.Battery Save
15.SQL
Technical Specification
GENERAL |
|
Frequency Range |
UHF:400-470MHz |
RF Output Power | ≤8W |
Channels | 16 |
Channel Spacing | Wide:25KHz Narrow:12.5KHz |
CTCSS/DCS | 50 CTCSS / 105 DCS |
Antenna Impedence | 50Ω |
Operating Temperature | -30℃+60℃ |
Operating Voltage | DC 7.4V |
Battery Type | 2200mAh |
Dimension(Excluding antenna) | 124(H)×58(W)×39(D)mm |
Weight(Battery,Antenna Including) | About 230g |
TRANSMITTER |
|
Output Power |
≤8W |
Modulation Mode | F3E |
Modulation Sensitivity |
12±5mV |
Modulation Distortion | ≤ 1% |
Frequency Stability | ±1.5×10-6ppm |
Adjacent Channel Power | ≥ 62 dB |
RECEIVER | |
Reference Sensitivity | ≥ -122 dBm |
Adjacent Channel Selectivity | ≥ 55 dB |
Inter-modulation | ≥ 55 dB |
Block |
≥ 84 dB |
Rated Output Power | ≤1000mW |
Rated Audio Distortion | ≤5% |
Packing&Delivery
Two-way Radio Walkie Talkie Gift Box, 10 pcs / carton.
* 1 x HYDX A815
* 1 x Antenna
* 1 x Battery
* 1 x Charger
* 1 x Belt Clip
* 1 x Hand Strap
* 1 x User Manual
