Brand:
HYDXItem NO.:
G30Order(MOQ):
100Payment:
T/T,PayPalProduct Origin:
ChinaColor:
BlackShipping Port:
Quanzhou/Xiamen/ShenzhenLead Time:
30~45Weight:

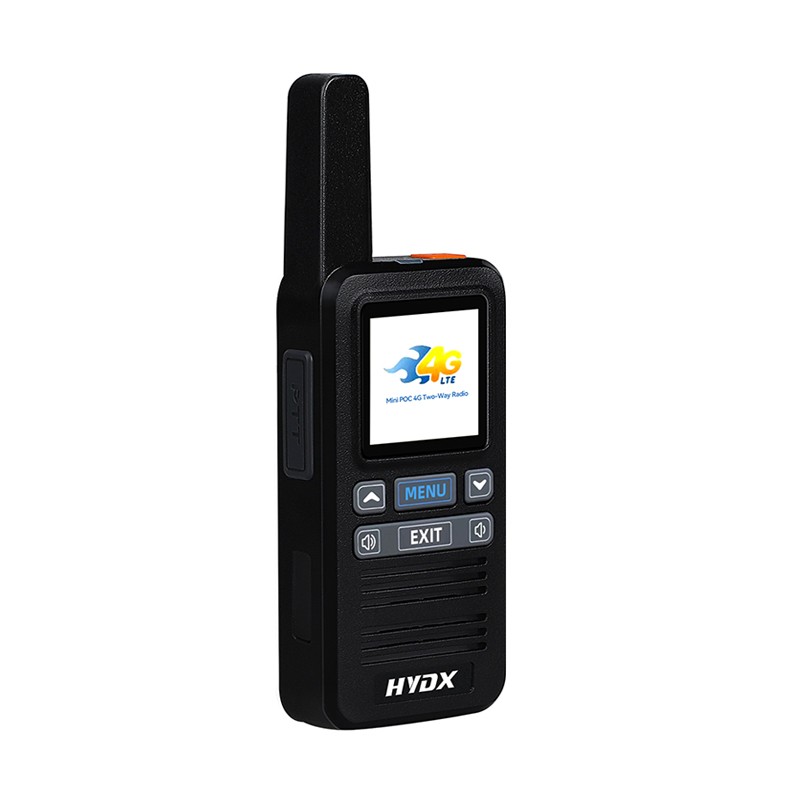

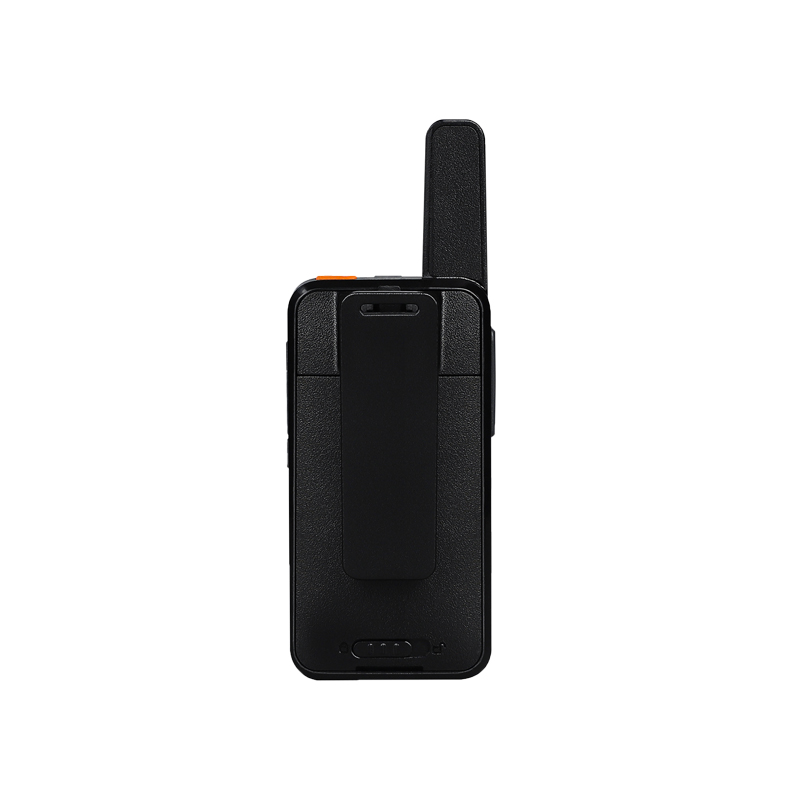

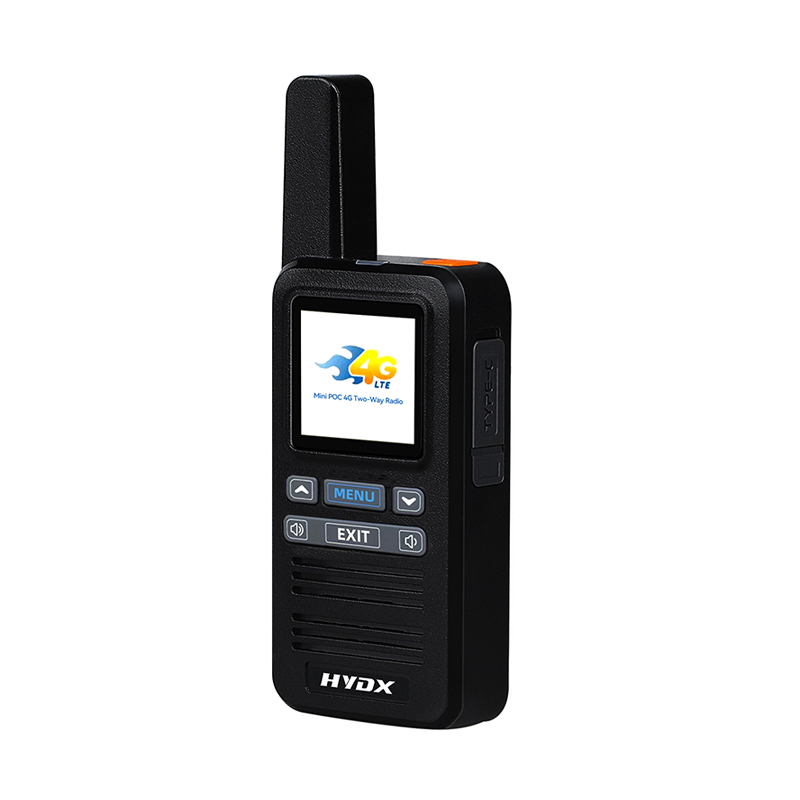

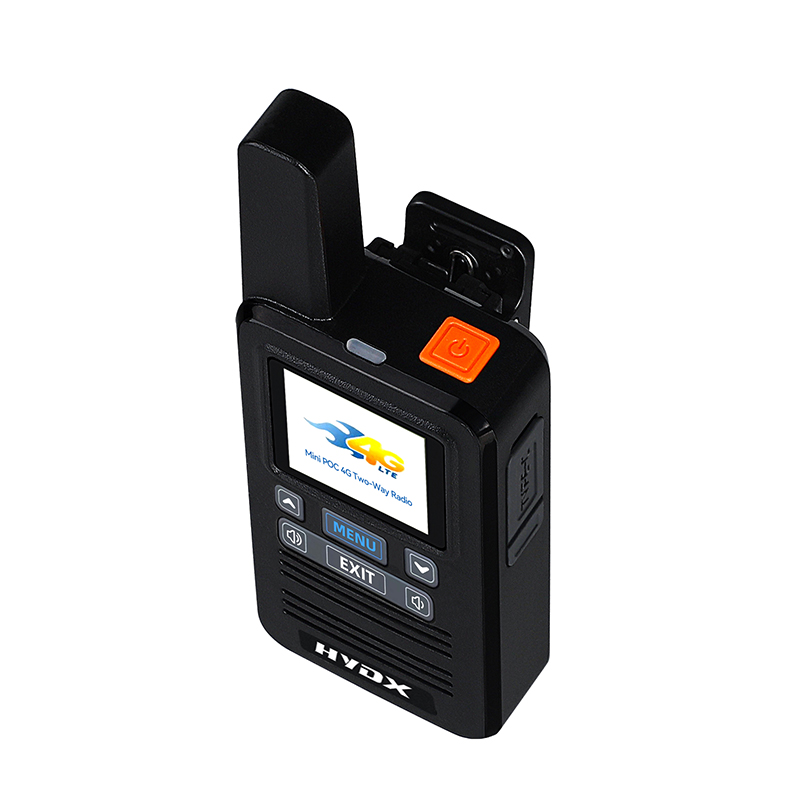

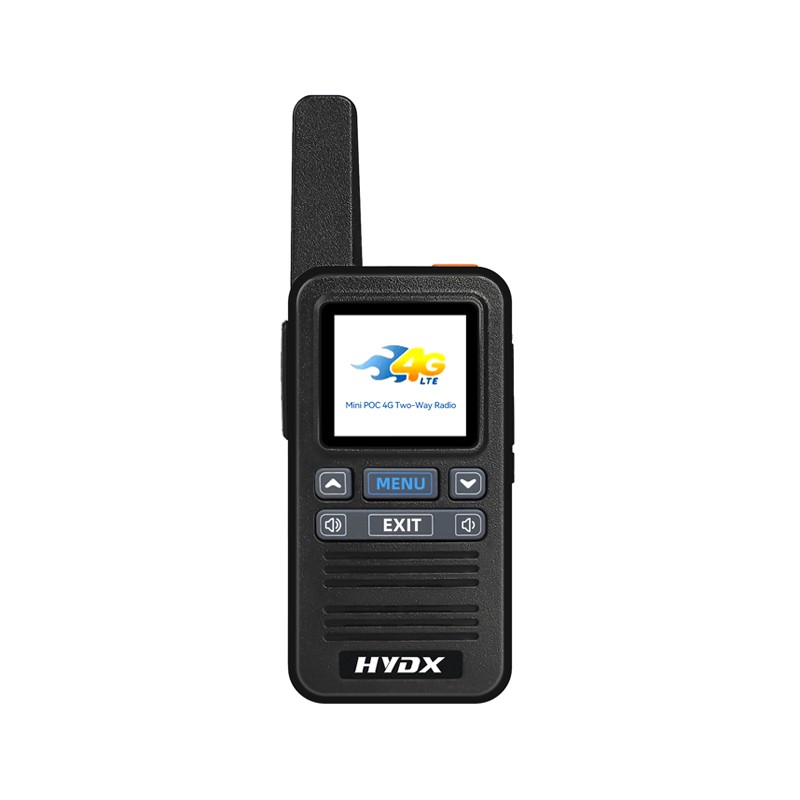

122Mini 4G CAT.1 PORTABLE POC Radio
Product Description:
·1600mAh, 4G radio. Clear voice: G30 is equipped with a big size speaker to ensure loud and clear voice calls.
·G30 is an efficient & multifunctional trunking radio for professional users across 4G. Along with the 1.44-inch lcd display, G30 adopts reliable design with short antenna. Anti-fall, dustproof. With sturdy shell, multi-protective design of imported materials mechanical seismic structure. Designed for outdoor use, easy to carry in outdoor travel.
·Band: M10C Version-FDD B1/B3/B5/B8; TDD B38/B39/B40/B41
·Band: M12C-EU Version-FDD B1/B2/B3/B4/B5/B7/B8/B20/B28; TDD B34/B38/B39/B40/B41
·Band: M12C-NA Version-FDD B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B66; TDD B38/B40/B41n
·Support private call and group call and interrupt communication function; You can add unlimited group members and notify urgent information anytime.
Main Functions
1.4G LTE
2.1.44 inch Colorful LCD Display
3.Group Select
4.Members Selection
5.Backlight Setting
6.Lock Keyboard
7.Single Call
8.Display Setting
9.Automatic Display Rest
10.Prompt Tones Setting
11.Battery Save
12.NOAA
13.Type-C Charging
Technical Specification
GENERAL | |
Working Voltage |
DC 4.2V |
Operation | Linux |
Language | Chinese/English |
Operating Temperature | -10℃+55℃ |
Battery Type | 1600mAh Li-ion |
Battery Life | About 52Hours |
Dimension | 48(H)×37(W)×134(D)mm |
Weight | About 122g |
SIM Card | Nano SIM Card |
Audio Output Power | ≤ 2W@8Ω |
Network | 4G/CAT.1 |
Suitable Platform | RealPTT/POCSTAR/Chayu/Xin-PTT/BoardPTT |
·M10C Version
LTE FDD Frequency |
B1 | Tx Frequency:1920-1980MHz | Rx Frequency:2110-2170MHz |
B3 | Tx Frequency:1710-1785MHz | Rx Frequency:1805-1880MHz | |
B8 | Tx Frequency:880-915MHz | Rx Frequency:925-960MHz | |
LTE TDD Frequency |
B38 | Tx Frequency:2570-2620MHz | Rx Frequency:2570-2620MHz |
B39 | Tx Frequency:1880-1920MHz | Rx Frequency:1880-1920MHz | |
B40 | Tx Frequency:2300-2400MHz | Rx Frequency:2300-2400MHz | |
B41 | Tx Frequency:2496-2690MHz | Rx Frequency:2496-2690MHz |
LTE FDD Frequency |
B1 | Tx Frequency:1920-1980MHz | Rx Frequency:2110-2170MHz |
B2 | Tx Frequency:1850-1910MHz | Rx Frequency:1930-1990MHz | |
B3 | Tx Frequency:1710-1785MHz | Rx Frequency:1805-1880MHz | |
B4 | Tx Frequency:1710-1755MHz | Rx Frequency:2110-2155MHz | |
B5 |
Tx Frequency:824-849MHz | Rx Frequency:869-894MHz | |
B7 | Tx Frequency:2500-2570MHz | Rx Frequency:2620-2690MHz | |
B8 | Tx Frequency:880-915MHz | Rx Frequency:925-960MHz | |
B20 |
Tx Frequency:832-862MHz | Rx Frequency:791-821MHz | |
B28 | Tx Frequency:703-748MHz | Rx Frequency:758-803MHz | |
LTE TDD Frequency |
B34 | Tx Frequency:2010-2025MHz | Rx Frequency:2010-2025MHz |
B38 | Tx Frequency:2570-2620MHz | Rx Frequency:2570-2620MHz | |
B39 | Tx Frequency:1880-1920MHz | Rx Frequency:1880-1920MHz | |
B40 | Tx Frequency:2300-2400MHz | Rx Frequency:2300-2400MHz | |
B41 | Tx Frequency:2496-2690MHz |
Rx Frequency:2496-2690MHz |
Packing&Delivery
Two-way Radio Walkie Talkie Gift Box, 40 pcs / carton.
* 1 x HYDX G30
* 1 x Charger
* 1 x Battery
* 1 x Belt Clip
* 1 x Hand Strap
* 1 x User Manual
* 1 x Type-C Cable
