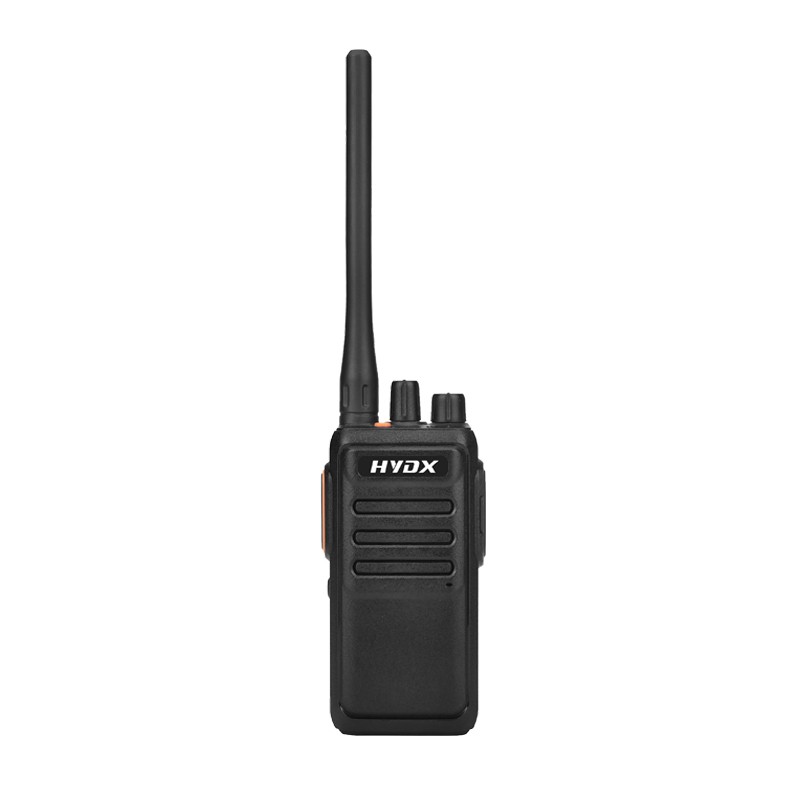

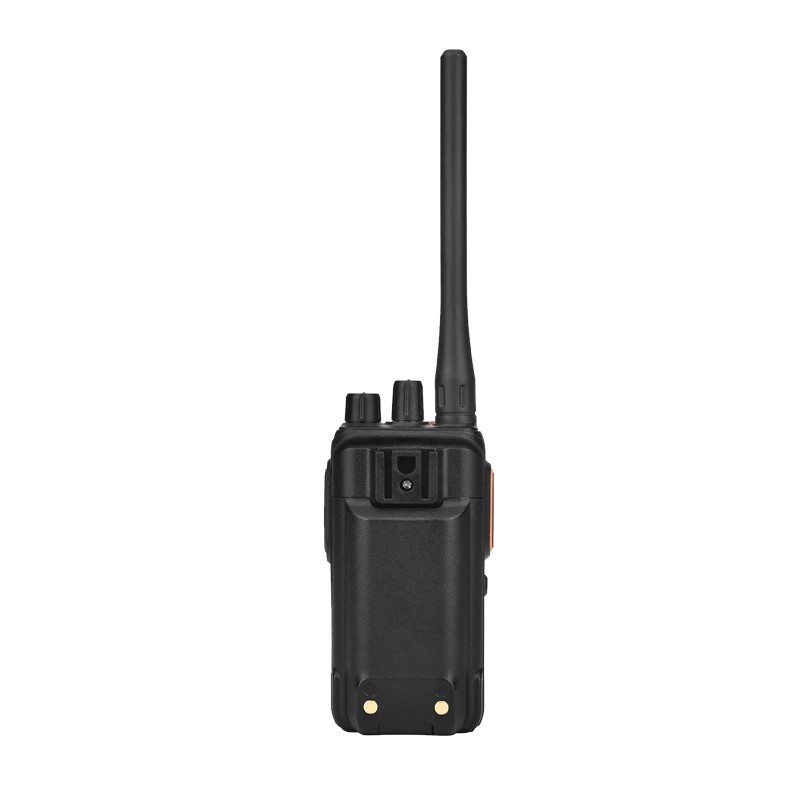

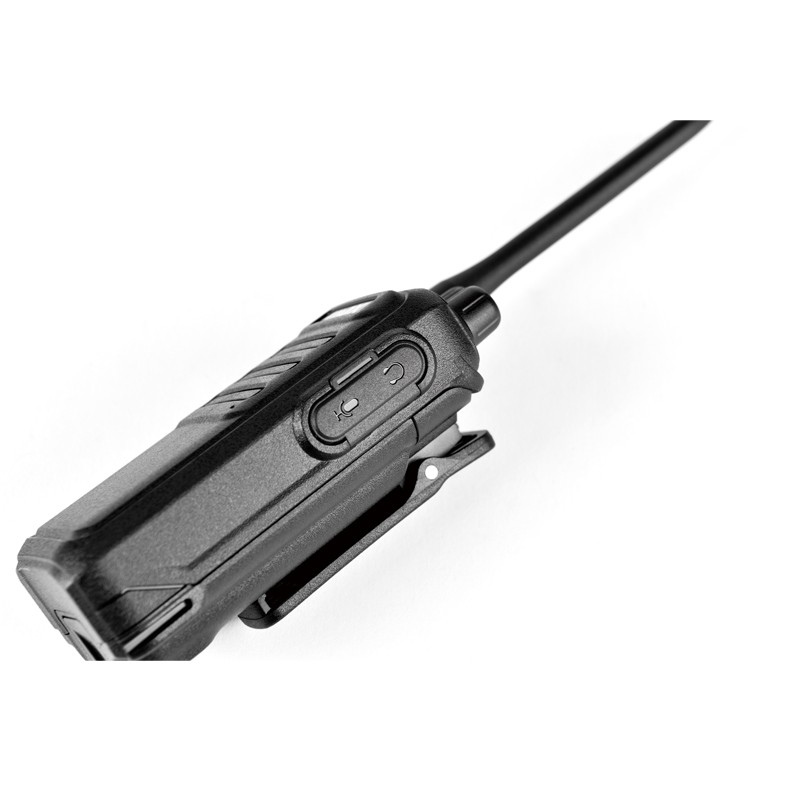

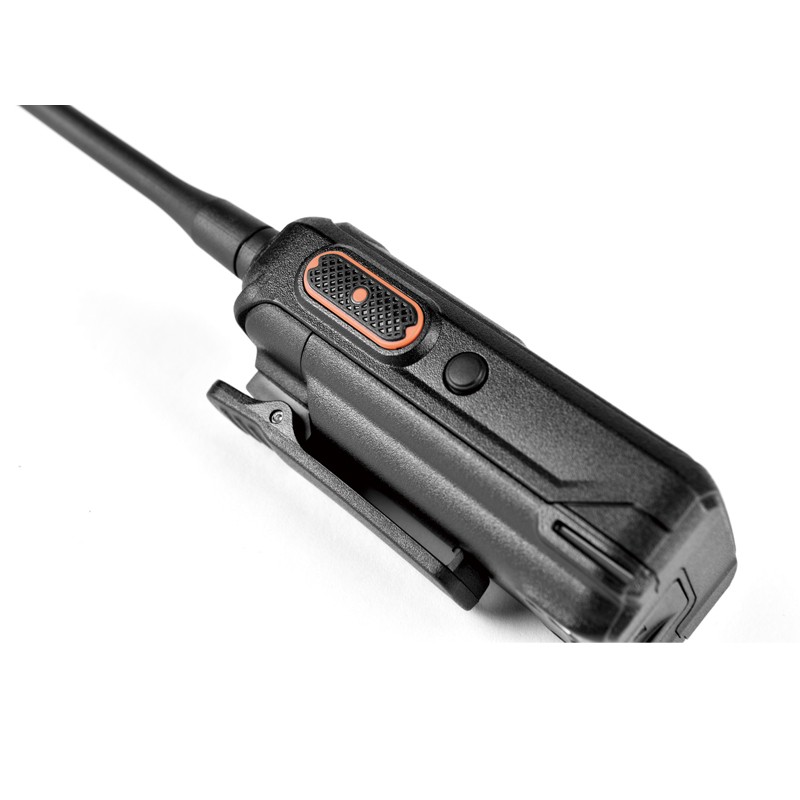

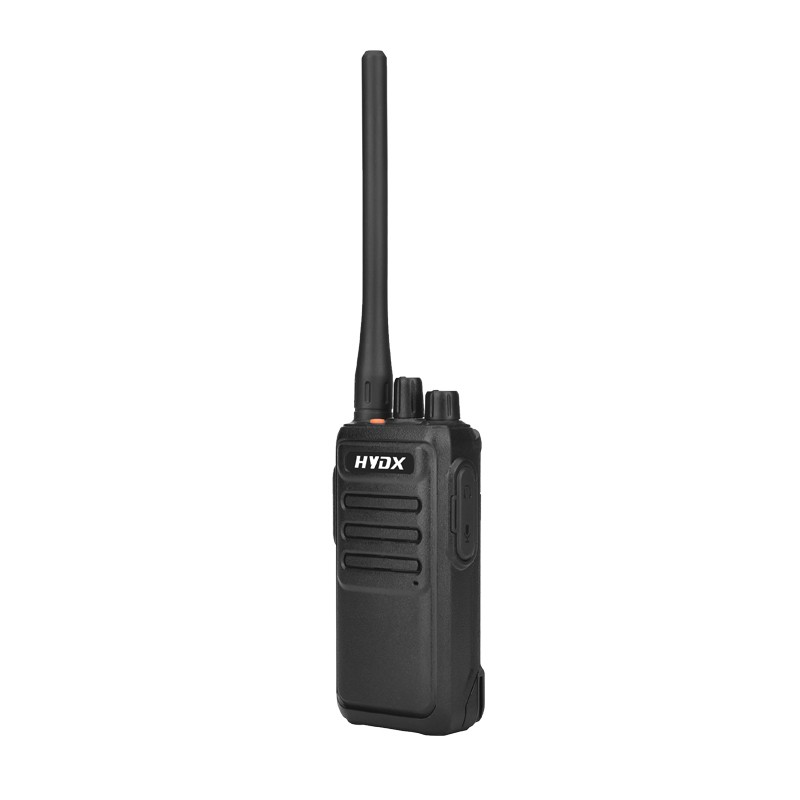

10km UHF Handheld Portable Two Way Radio

UHF portable handheld 8W 2200mAh wireless communication two way radio

Brand:
HYDX
Item NO.:
A800
Order(MOQ):
200
Payment:
T/T,L/C,Credit Card,PayPal,Western Union,Cas
Product Origin:
China
Color:
Black
Shipping Port:
Xiamen/Shenzhen
Lead Time：
45~60
Weight：
230

Inquiry now

Product Detail

Product Description：

·HYDX A800 has stable performance, high power and large capacity battery, and supports HYDX-A518 dual color housing. Very cost-effective, can be used in public areas, outdoor and other places.

·Long range with perfect size make them easy to hold; super compact for long life using; gets long range with the included antenna and exceptional 2200 mAh rechargeable Li-ion battery; each radio includes its accessory

·VOX Mode for hands-free provides great reception and transmit clarity to keep on communicate with fellow co-worker;you can attach the radio to the belt and clip the earphones to the colla

·Worry-free day night shift with a large-capacity 2200mAh Li-ion rechargeable battery;up to 20 hours of battery life per charge.

Main Functions

1.400-470MHz/136-174MHz

2.Chinese/English voice report

3.High/Low Power Switchable

4.Compandor

5.Scrambler

6.16 Channels

7.VOX

8.CTCSS/DCS

9.BCLO

10.Scan

12.Wide/Narrow Band

13.VOX

Technical Specification

GENERAL
Frequency Range	UHF:400-470MHz VHF:136-174MHz
RF Output Power	H:≤8W L:≤2W
Channels	16
Channel Spacing	Wide:25KHz Narrow:12.5KHz
CTCSS/DCS	50 CTCSS / 105 DCS
Antenna Impedence	50Ω
Operating Temperature	-30℃+60℃
Operating Voltage	DC 7.4V
Battery Type	2200mAh
Dimension(Excluding antenna)	124(H)×58(W)×39(D)mm
Weight(Battery,Antenna Including)	About 230g
TRANSMITTER
Output Power	H:≤8W L:≤2W
Modulation Mode	F3E
Modulation Sensitivity	12±5mV
Modulation Distortion	≤ 1%
Frequency Stability	±1.5×10-6ppm
Adjacent Channel Power	≥ 65 dB
RECEIVER
Reference Sensitivity	≤ -122 dBm
Adjacent Channel Selectivity	≥ 55 dB
Inter-modulation response immunity	≥ 55 dB
Block	≥ 84 dB
Rated Output Power	≤1000mW
Rated Audio Distortion	≤5%
