What's the advantage of SMT for two-way radio?Jul 27, 2024
SMT stands for Surface Mount Technology, which is a method of electronic assembly that involves mounting electronic components directly onto the surface of a printed circuit board (PCB), rather than the traditional through-hole installation.

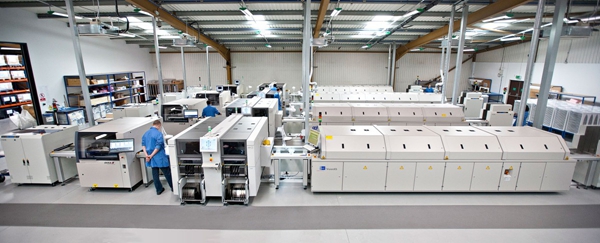

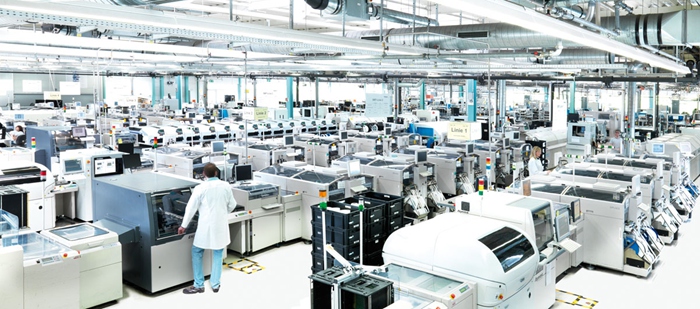

Come and take a look at factory real shot of SMT production line of two-way radio.
It has become the mainstream technology in the modern electronics manufacturing industry due to its high efficiency, high reliability, and adaptability.
The key steps of SMT technology include:
Solder Paste Printing: Using a stencil printer to print solder paste onto the designated pads of the PCB.
Component Placement: Using an automatic placement machine to accurately place surface-mounted devices (SMD, Surface Mount Device) onto the solder paste.
Reflow Soldering: Passing the PCB through a reflow oven, where the solder paste melts and solidifies at high temperatures, forming solder joints and securing the components to the PCB.
Inspection and Quality Control: Using automatic optical inspection (AOI) equipment to check the quality of soldering and the accuracy of component placement.
Subsequent Processing: May include cleaning, repair, testing, and other steps to ensure the quality of the final product.
The special aspects of the SMT process in the production of walkie-talkie products are mainly reflected in the following areas:
High-density Assembly: The internal space of walkie-talkies is limited, and SMT technology can perform high-density assembly, making the circuit board layout more compact.
Rapid Production: The high degree of automation in the SMT process can quickly produce walkie-talkies, meeting the needs of mass production.
Reliability: SMT technology connects components to the PCB through reflow soldering, which is more robust than traditional through-hole soldering, enhancing the reliability and durability of walkie-talkies.
Quality Control: Quality control in the SMT process is very strict, including automatic optical inspection (AOI), X-ray inspection, etc., to ensure the assembly quality of walkie-talkies.
Customization: Walkie-talkies may have different functions and performance requirements according to different application scenarios and customer needs. The SMT process can be flexibly adjusted to meet these customized requirements.
Environmental Considerations: When used outdoors, walkie-talkies may face harsh environments, and the SMT process needs to consider environmental factors, such as waterproof and dustproof.
Through these special aspects, the SMT process can ensure that walkie-talkie products not only meet communication functions but also have good portability, reliability, and durability.
